Press Brake Tooling Solutions for Precision Sheet Metal Bending
Engineered for extreme accuracy and long service life, CAMT manufactures high-performance press brake tooling , precision dies, and custom tooling designed to maximize throughput and minimize setup times for global fabricators.
Precision Bending Expertise
Advanced manufacturing capability delivering durable press brake tooling with consistent accuracy for industrial applications.

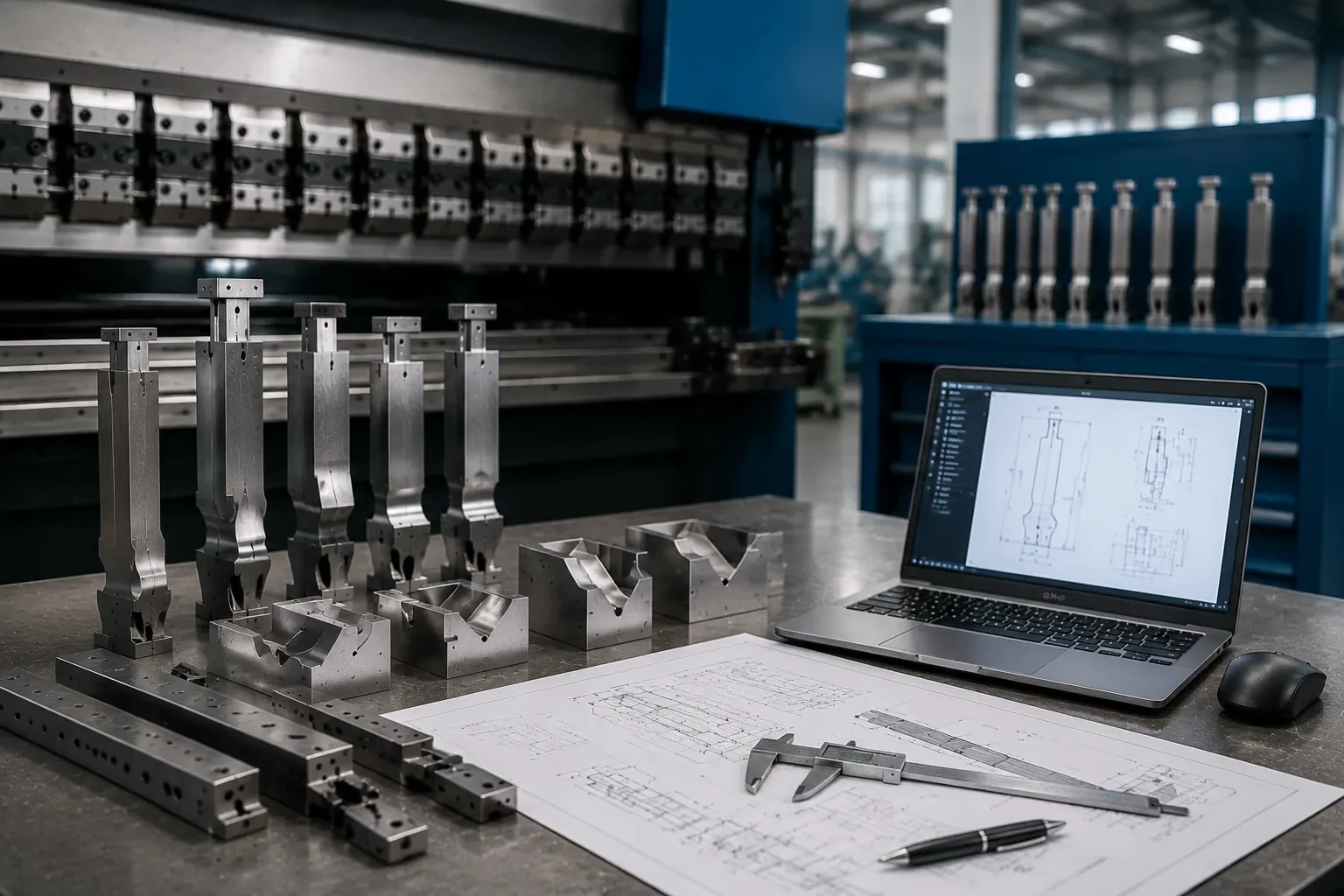

Precision Press Brake Tooling Portfolio
Explore CAMT's complete tooling range, from standard punches and dies to customized bending solutions engineered for global sheet metal manufacturers.
Press Brake Punches
Precision upper tooling engineered for accurate bending, repeatability, and long service life across demanding production environments.
Press Brake Dies
High-strength lower tooling designed for stable bending accuracy, reduced marking, and extended operating life.
V Dies & Die Systems
Flexible die solutions optimized for different materials, thicknesses, bending angles, and production requirements.
Custom Press Brake Tooling
Custom-engineered tooling developed from customer drawings, machine specifications, and complex bending requirements.
Compatible Tooling Systems
Replacement tooling compatible with major press brake systems worldwide for reliable installation and performance.
Engineering Support
Technical assistance covering tooling selection, drawing review, and bending optimization before production.

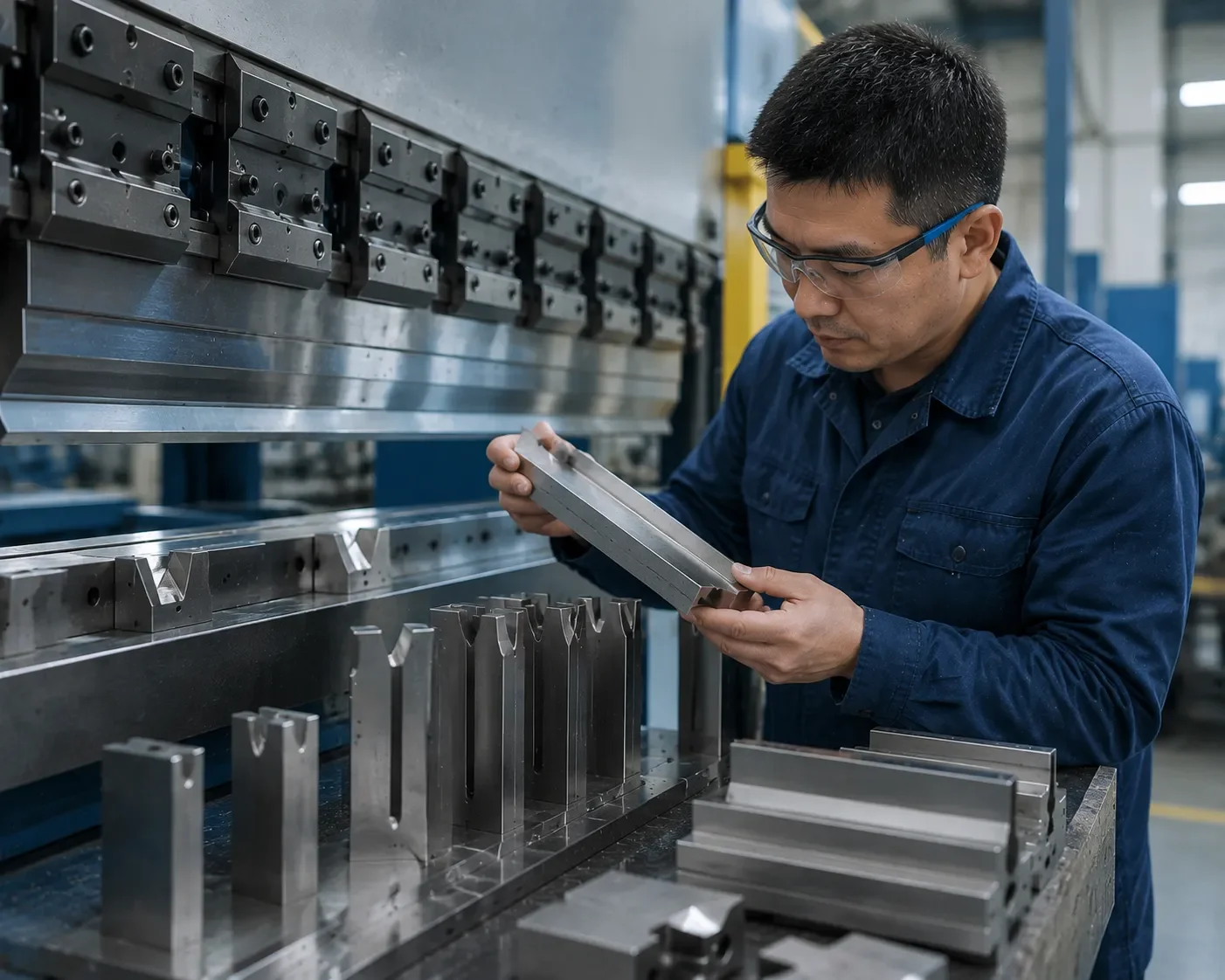

How to Select Press Brake Tooling
Master precision tooling selection to optimize bend accuracy, extend machine lifespan, and prevent costly production downtime with the right press brake tooling.
Essential Selection Factors
Evaluating workpiece parameters early ensures repeatable bend tolerances and protects your press brake components from premature wear.
Material Type & Tensile Strength
High-strength stainless steel and alloys require higher tonnage capacities, acute angles, and reinforced tooling to manage springback.
Sheet Thickness & Bend Radius
Achieving the correct inside bend radius depends directly on sheet thickness. Proper pairing prevents outer-flange cracking and distortion.
V Die Selection & Width
Standard V die selection follows the 8x thickness rule for mild steel, balancing required tonnage against minimum flange length constraints.
Machine & Clamping System
Confirm tang style, shut height, working length, and load limits to ensure full compatibility with Amada, Trumpf, Bystronic, or Wila systems.
CAMT Engineering Support
Unsure of the right combination? CAMT engineering assists tooling selection by analyzing your part drawings, tonnage constraints, and material specs prior to quote confirmation, including whether offset punches are the better fit.
Tooling Decision Matrix & Risks
Eliminate operational bottlenecks and prevent catastrophic tool breakage by understanding critical setup mistakes.
3 Costly Tooling Mistakes to Avoid
Over-Tonnage Violations
Exceeding maximum tonnage limits causes permanent deformation to precision-ground press brake punches, cracks lower V dies, and risks damaging the press brake ram.
Incorrect V Opening Sizing
Selecting an excessively narrow V opening spikes tonnage requirements unnecessarily, whereas an oversized V die leads to inconsistent bend angles and radius variation.
Mismatched Segment Heights
Mixing worn tooling segments with new sectioned pieces leads to uneven clamping pressure, bad angular accuracy across the bend line, and premature tool wear.

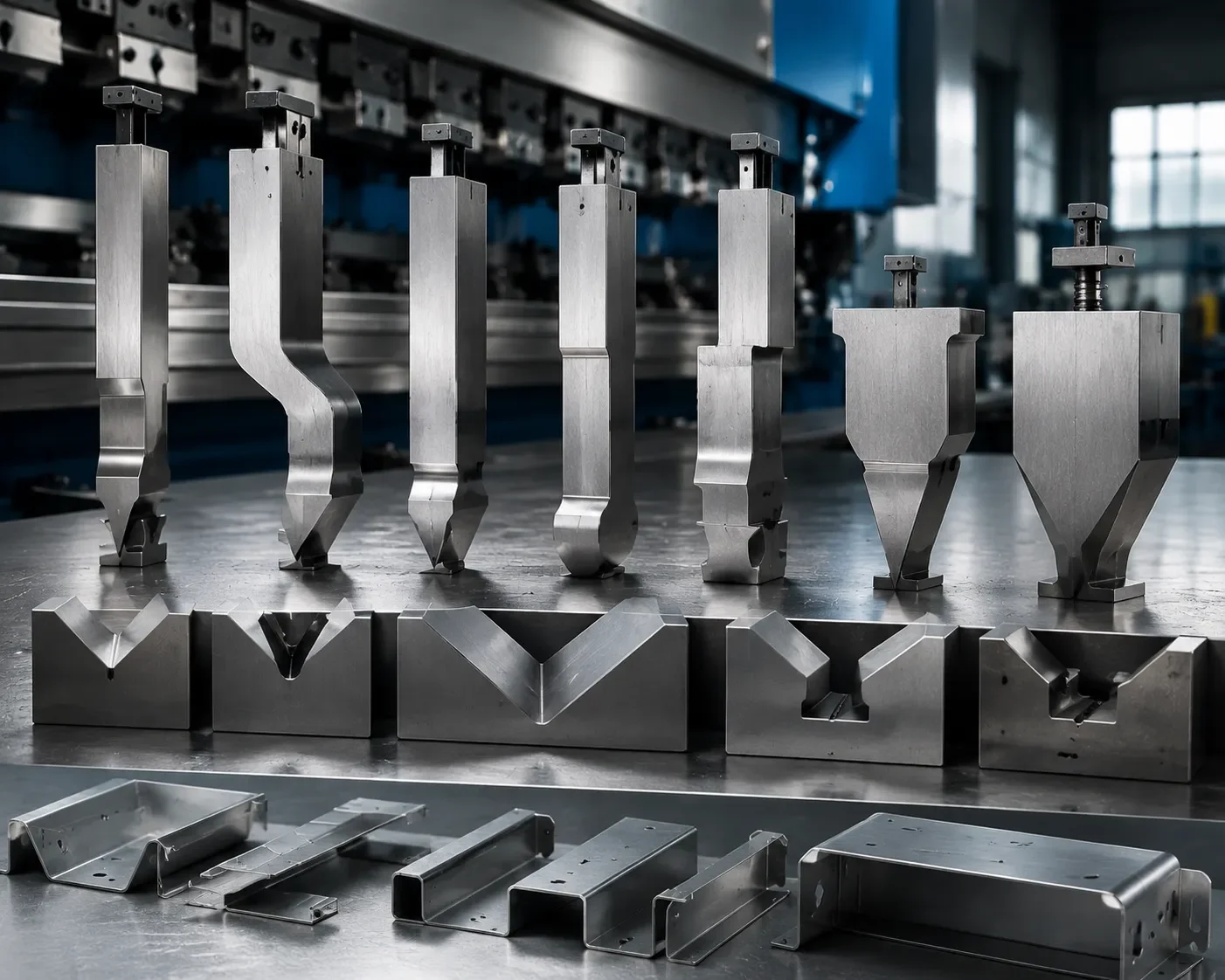

Press Brake Tooling Profile Comparison
Match tool geometry directly to part specifications and bending methods. CAMT helps engineers and procurement teams evaluate press brake tooling profiles to optimize bend accuracy and production efficiency.
Throat Depth & Clearance
Selecting a gooseneck punch or offset punch eliminates workpiece contact with tool shoulders during complex channel and box forming.
V Die Width Optimization
A thorough V die comparison applies the 8x material thickness rule to control springback and minimize required press brake tonnage.
CAMT Engineering Support
CAMT analyzes material yield strength, bend radius targets, and flange dimensions to recommend optimal, long-lasting tooling profiles.
Select the Ideal Profile for Precise Bend Accuracy
Evaluating punch and die geometries upfront prevents interference errors and reduces machine downtime. CAMT manufactures precision-ground profiles for standard, gooseneck, offset, and custom press brake setups.
Need the Right Press Brake Tooling Solution?
Get professional tooling recommendations from CAMT engineers. Send your part drawings, machine model, and bending requirements — our team will help you select the right punches, dies, or custom tooling solution.

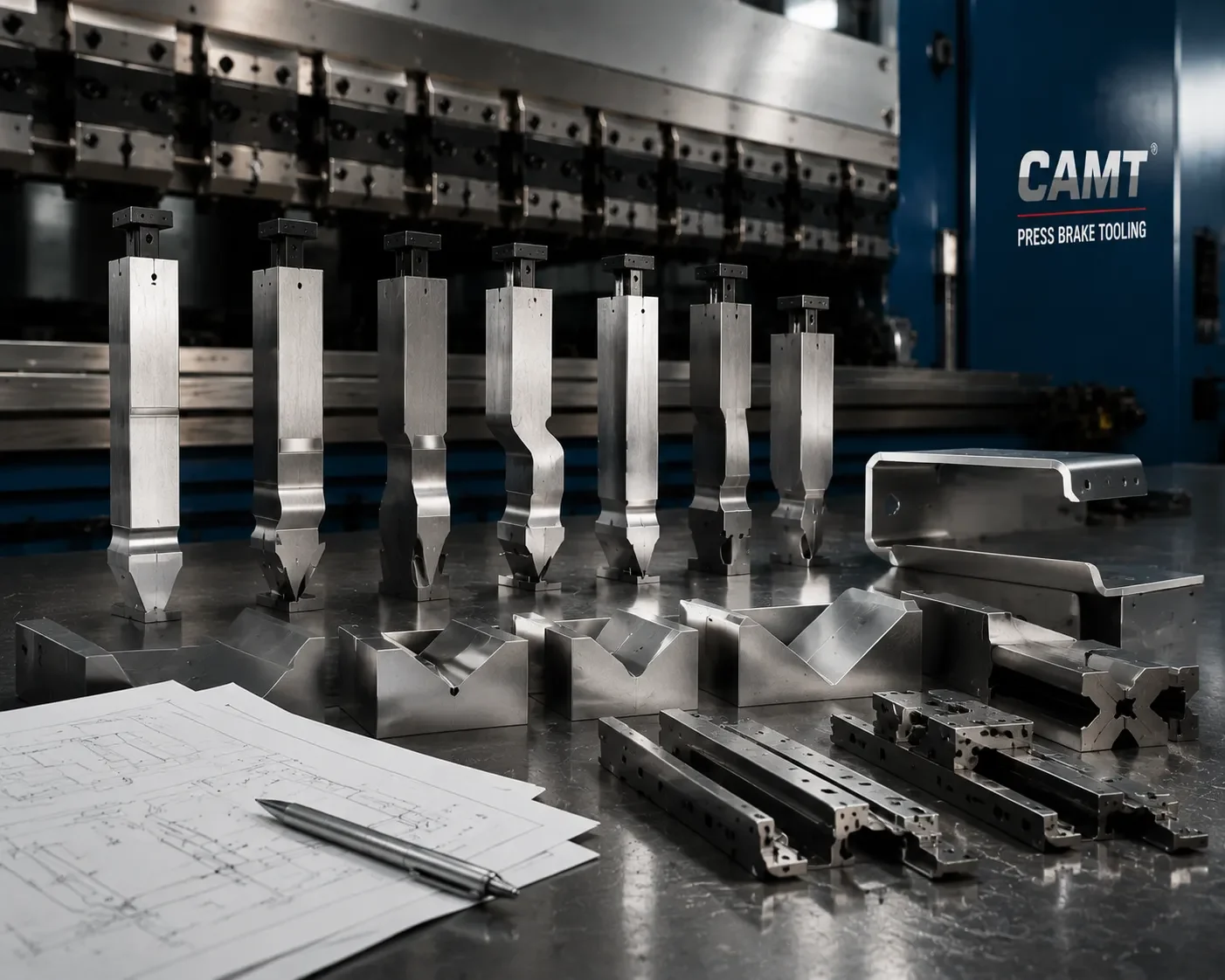

Material and Machine Compatibility
CAMT press brake tooling delivers certified press brake tooling compatibility across major machinery brands and diverse sheet metal grades.
Workpiece Materials
Precision-milled from deep-hardened tool steels to ensure structural integrity and minimum wear under high tonnage applications.
Machine System Support
Manufactured to precise OEM tolerances to fit top global press brake clamping systems and automatic tool changers.
Guaranteed Fit for Your Bending Setup
Eliminate installation errors and downtime. CAMT application engineers verify your machine model, tang style, and tonnage limits prior to production for seamless drop-in operation. For specialized bends, our gooseneck punches and offset punches help match challenging profiles.
Manufacturing Precision Through Proven Verification
CAMT applies strict quality control protocols at every production stage to guarantee tool longevity and sub-micron bending accuracy.
End-to-End Production Process 6 Steps
Certified Tool Steels
We source high-grade, premium tool steel alloys featuring complete mill test certifications to eliminate internal defects prior to machining.
Multi-Axis Roughing & Profiling
Advanced CNC milling machines rapidly remove stock while holding strict roughing tolerances across complex press brake punches and die profiles.
Deep Vacuum Hardening
Computerized heat treatment cycles achieve deep core hardness and superior surface wear resistance, extending tool operational life.
Precision CNC Grinding
Automated precision grinding delivers tight dimensional accuracy, smooth micro-finish surfaces, and exact tip geometry.
Dimensional & Hardness Testing
Every tool undergoes rigorous quality inspection using optical comparators, laser measurement, and CMM equipment before release.
Protective Packaging & Global Dispatch
Finished press brake tooling is corrosion-protected, securely crated, and dispatched with full inspection reports attached.
Quality Verification Metrics
Documented engineering standards confirm physical integrity and precise tolerances across every production batch.

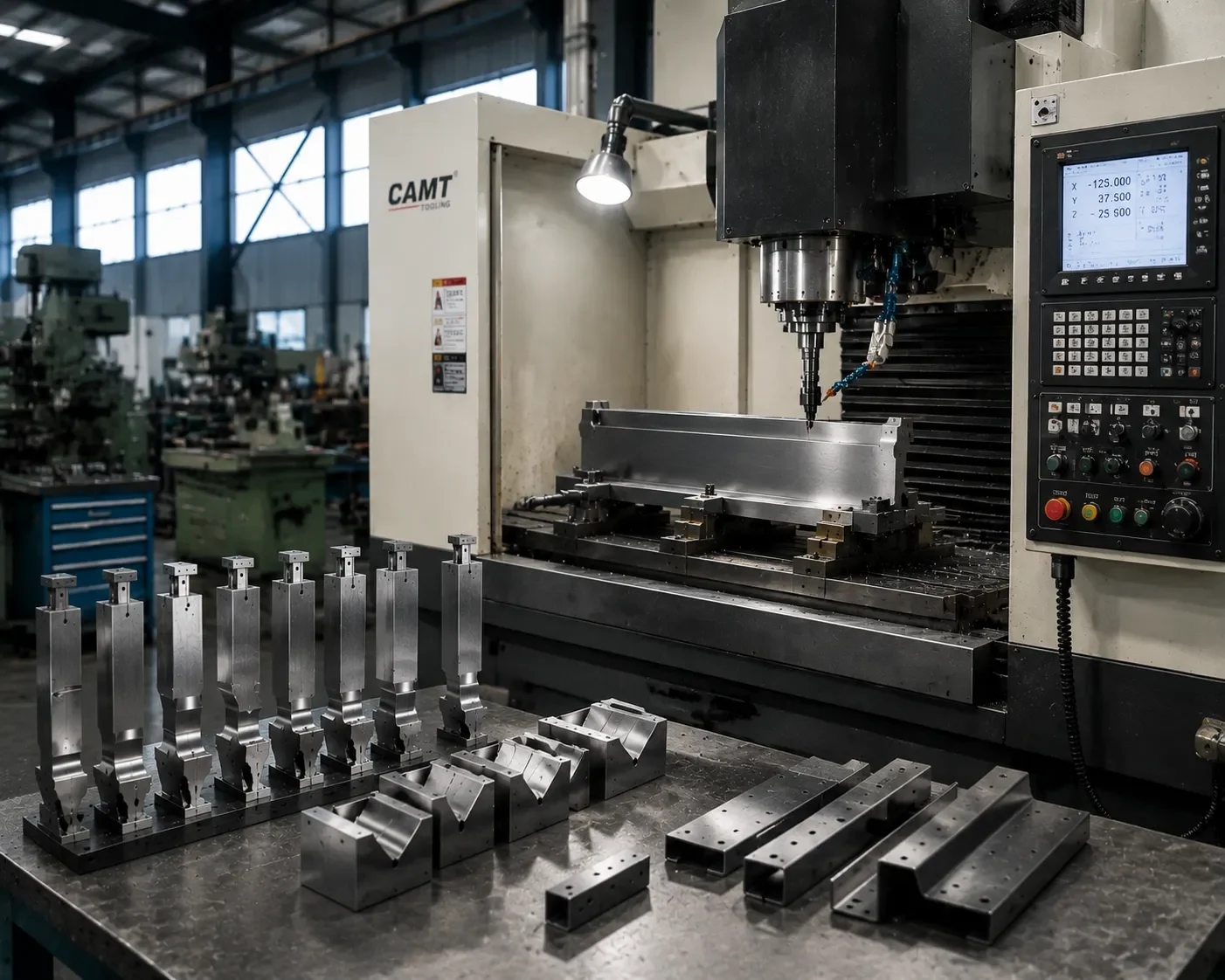

State-of-the-art CNC grinding center equipped with real-time optical and laser inspection systems.
Engineering Collaboration
Custom Press Brake Tooling — From Concept to Production
CAMT partners with sheet metal manufacturers to engineer custom press brake tooling for complex geometries and specialized applications. Send us your specs, and our engineering team will guide your design from initial review to full production.
Submit Drawings
Upload your part CAD files, material specifications, and bend tolerances. We support STEP, IGES, DXF, DWG, and PDF formats.

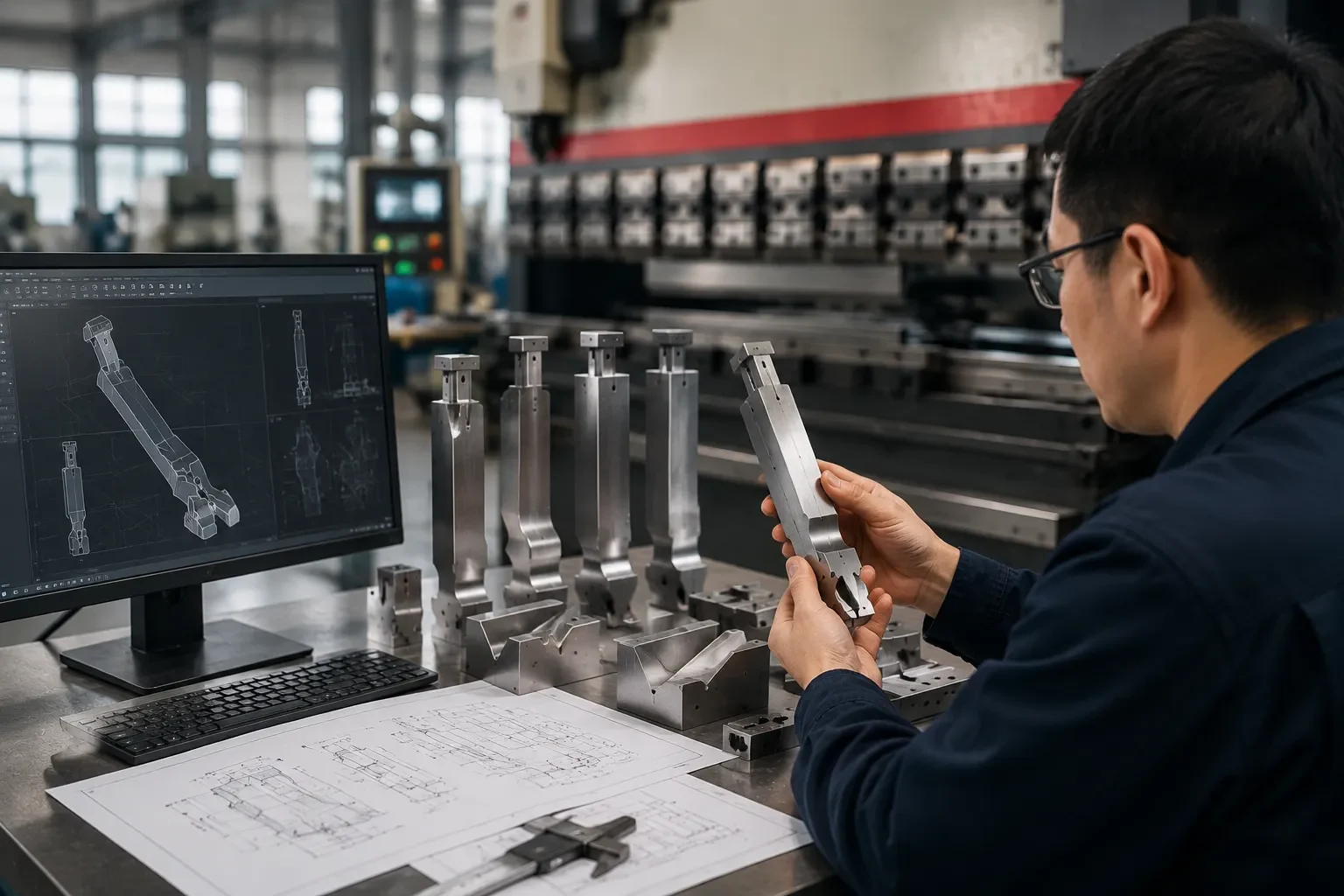

Technical Review
CAMT tooling engineers evaluate tonnage requirements, springback, profile clearances, and machine compatibility to prevent production bottlenecks.
Design & Optimization
We optimize punch and die profiles, steel selection, and heat-treatment depths to maximize tool life and maintain precision bending tolerances.
Prototyping & Production
After sample testing and dimensional approval, CAMT manufactures your custom press brake tooling with rigorous quality inspection and fast turnaround.
Why Fabricators Rely on CAMT for Custom Tooling
- Direct access to experienced tooling engineers throughout the design process
- Solutions engineered for complex offsets, high-tensile alloys, and tight internal radii, including offset punches for demanding bends
- Full compatibility with Amada, Trumpf, Bystronic, Wila, LVD, and European style clamping systems
- Fast technical evaluations and detailed engineering quotes within 24 hours
Press Brake Tooling FAQ
Get direct engineering answers to streamline procurement. Explore tool specifications, machine compatibility, production lead times, and custom fabrication protocols for CAMT tooling systems.
How do I verify press brake tooling compatibility with my machine?
How do I verify press brake tooling compatibility with my machine?
Compatibility depends on your machine's clamping system, beam length, tonnage capacity, and working height. CAMT manufactures precision tooling engineered for Amada, Trumpf, Bystronic, Wila, LVD, and American style press brakes. Provide your machine model and beam specifications to our technical team for immediate fitment verification.
What are standard lead times for standard vs. custom tooling orders?
What are standard lead times for standard vs. custom tooling orders?
Standard stock punches and V dies ship within 24 to 48 hours. Custom profile tooling or specialized radius assemblies typically require a manufacturing lead time of 2 to 3 weeks, which covers full CNC machining, deep heat treatment, precision grinding, and final inspection. Expedited production schedules are available upon request.
How do I request a formal price quotation for custom press brake tooling?
How do I request a formal price quotation for custom press brake tooling?
Submit your part CAD files (STEP, DXF, or PDF), material type, sheet thickness, target bend angles, and press brake tonnage limits. Our application engineering team reviews part geometry and provides a comprehensive line-item quote with delivery guarantees within 4 business hours.
What steel grades and hardening methods are used for CAMT tooling?
What steel grades and hardening methods are used for CAMT tooling?
CAMT utilizes high-grade alloy tool steels including 42CrMo, C45, and premium D2 tool steel. Working contact surfaces undergo deep induction or laser hardening to achieve 55-60 HRC, ensuring maximum wear resistance, structural integrity, and long service life under high-tonnage sheet metal fabrication demands.
Can CAMT design custom tooling for complex or multi-bend geometries?
Can CAMT design custom tooling for complex or multi-bend geometries?
Yes. CAMT specializes in custom-engineered tooling solutions for complex profiles, including offset dies, gooseneck punches, hemming sets, and multi-radius forming blocks. Our engineering team conducts 3D bend simulation studies prior to manufacturing to prevent collision risks and ensure accurate angular consistency.
Need Direct Technical Assistance?
Our application engineers are available to review your CAD files, calculate exact bend allowances, and recommend optimal press brake tooling configurations for your production needs.
Guaranteed response within 4 working hours for technical inquiries, drawing reviews, and tooling recommendations.
Request a Tooling Quote
Upload your CAD drawings, part specifications, or machine details to receive accurate pricing, lead times, and professional tooling recommendations from CAMT engineers.
±0.01mm
Grinding Precision
55-60 HRC
Hardened Steel Rating
24-48 Hrs
Standard Shipping
100%
Quality Inspected
