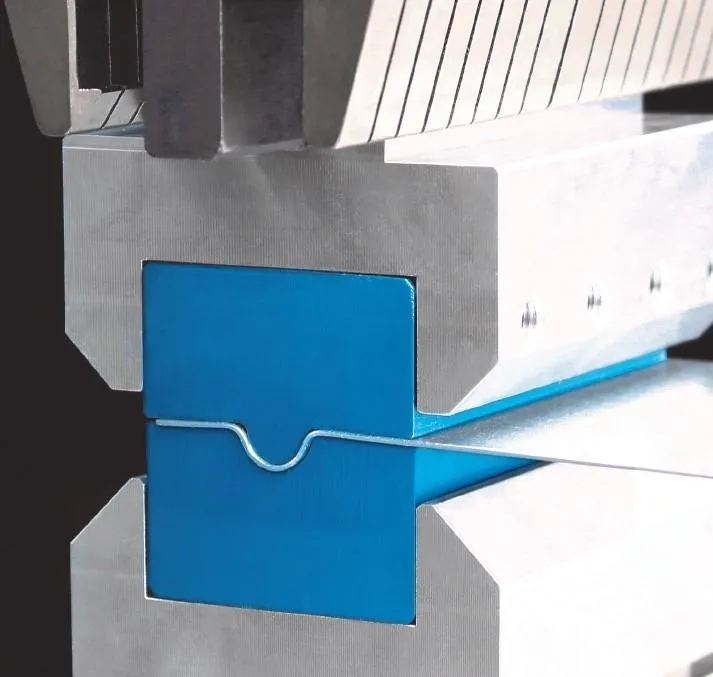

Custom Press Brake Tooling for OEM & Precision Bending
Engineered punches, dies, and press brake tooling sets built for complex profiles, high-strength alloys, non-standard machines, and high-volume production lines.
- Precision CNC grinding for exacting angle and profile tolerances
- Deep-hardened tool steel engineered for extended production lifespans
- Rapid OEM & ODM turnaround to keep your schedules on target
< 24h
Technical Review
7–10 Days
Prototyping Lead Time
50+
Countries Served
Custom Tooling Engineering
CAMT Tailored Punches, Dies & Bending Assemblies
Why Custom Tooling Matters
When off-the-shelf press brake tools hit their limit, CAMT engineers press brake tooling custom punch and die designs that resolve complex geometries and protect production margins.

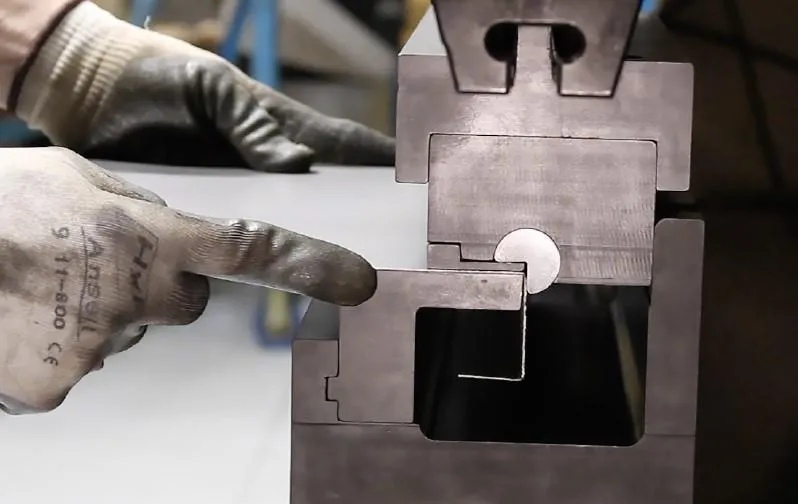

When Standard Tools Are Not Enough
- Irregular workpieces and non-standard geometries
- Special bending angles outside standard catalog limits
- Deep boxes and narrow flanges requiring custom clearance
- Severe springback issues on high-strength alloy plates
- Surface marking risks on pre-painted or polished sheets
- Heavy-duty forming requiring specialized tool steels
- Compatibility constraints with non-standard machine clamping
CAMT Special Bending Solutions
CAMT helps manufacturers translate difficult bending requirements into practical, precision-ground press brake punches and tooling solutions—tailored specifically to your machine model, workpiece material, and target cycle times.
Key Press Brake Custom Tooling Benefits
- Superior finished part consistency across long production runs
- Fewer trial bends and reduced press brake setup times with the right gooseneck punches for clearance-sensitive parts
- Lower scrap rates and minimized raw material waste
- Higher throughput and extended tool service life
Tooling Performance Comparison
| Feature | Standard | Custom |
|---|---|---|
| Geometry Flexibility | Fixed Catalog Items | Fully Custom Geometries |
| Precision Fit | Generic Tolerances | Machine-Matched Precision |
| Special Materials | General Steel Grades | Application-Driven Steels |
| Volume Production | Standard Job Shop Runs | High-Volume Optimized |
| Best For | Simple, Routine Parts | Complex & Non-Standard Bends |

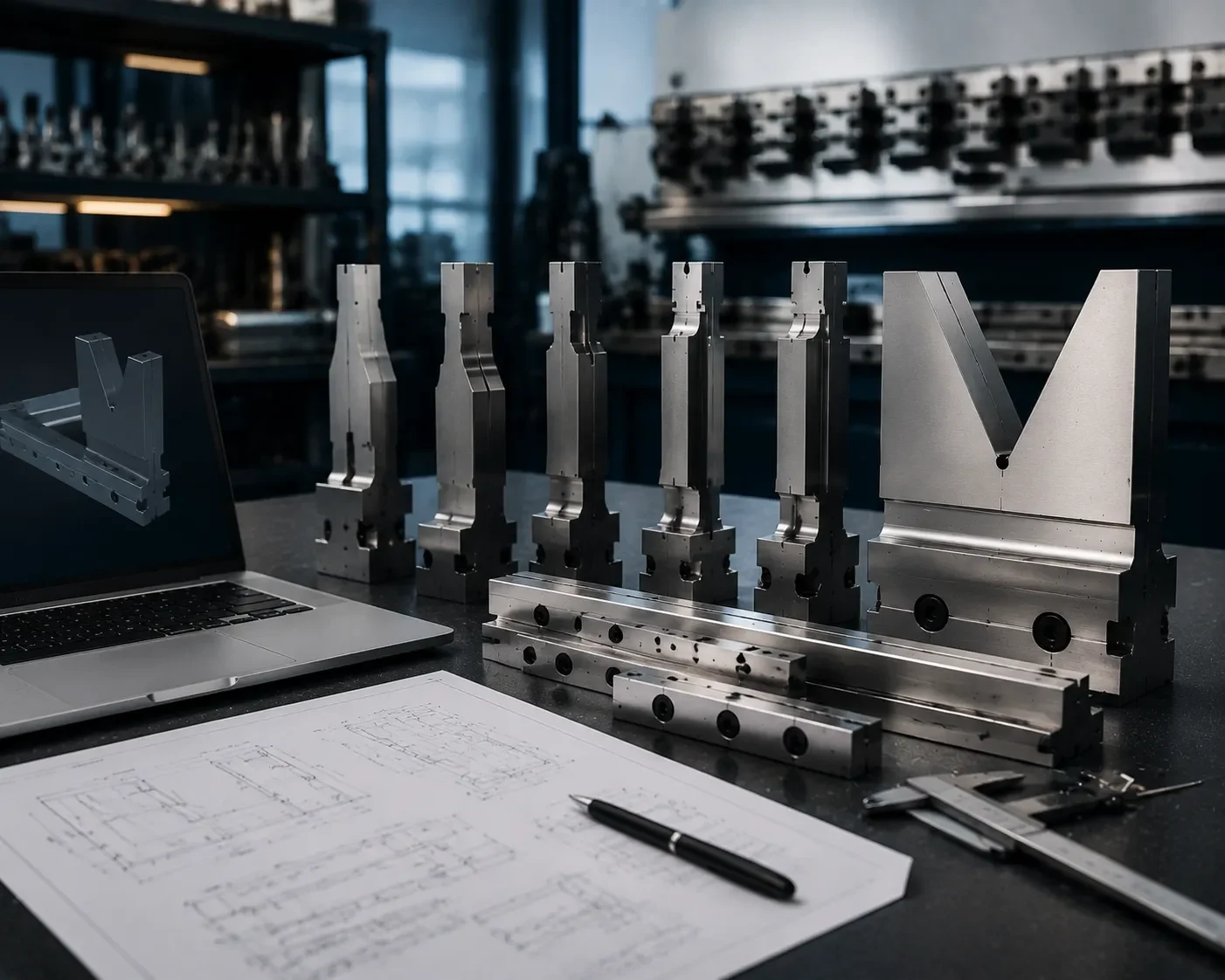

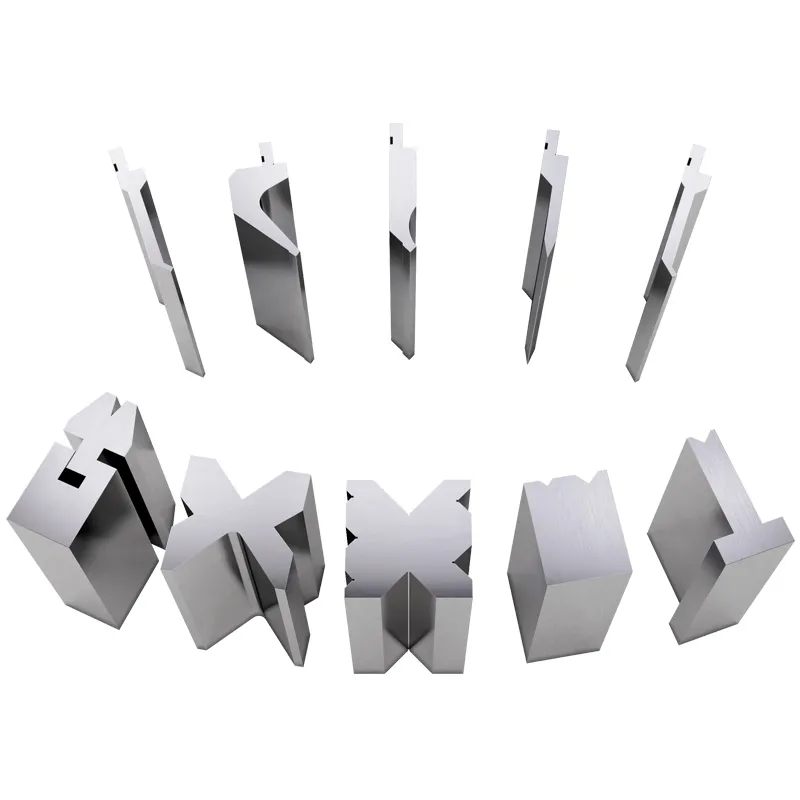

Custom Tooling Capabilities & Product Scope
CAMT delivers products including custom press brake punches, custom press brake dies, and complete bending sets engineered for challenging profiles, tight tolerances, and long-term production. For broader application coverage, explore our press brake tooling options.
Custom Punches
Engineered custom punch profiles that resolve part clearance issues and enable precise return bends on complex parts.
- Gooseneck Punches & Large-Radius Punches
- Offset & Z-Bending Punches
- Special Geometry Profiles
Custom Dies
Robust custom press brake dies tailored for non-standard material thicknesses, narrow flanges, and deep-box forming.
- Single-V & Multi-V Custom Dies
- Special V-Opening Dimensions
- Deep Channel & Box Bending Dies
Custom Tooling Sets
Matched upper and lower tooling packages designed together to maintain centerline alignment and repeat accuracy.
- Synchronized Tool Pass Lines
- Matched Upper & Lower Profiles
- Multi-Stage Tooling Setup
Special Features
Custom lengths, specialized heat treatment, and anti-marking surfaces to extend wear life and protect critical part finishes.
- Non-Standard Extra-Long Tooling
- Deep-Case Hardening Treatments
- Anti-Marking Surface Finishes
Tailored Solutions Across Target Application Sectors
CAMT provides OEM and ODM tooling customization across punches, dies, and complete bending sets. Whether processing high-tensile stainless steel or cosmetic enclosure panels, our custom profiles reduce trial bends, protect surface quality, and optimize press brake efficiency.
Key Application Scenarios

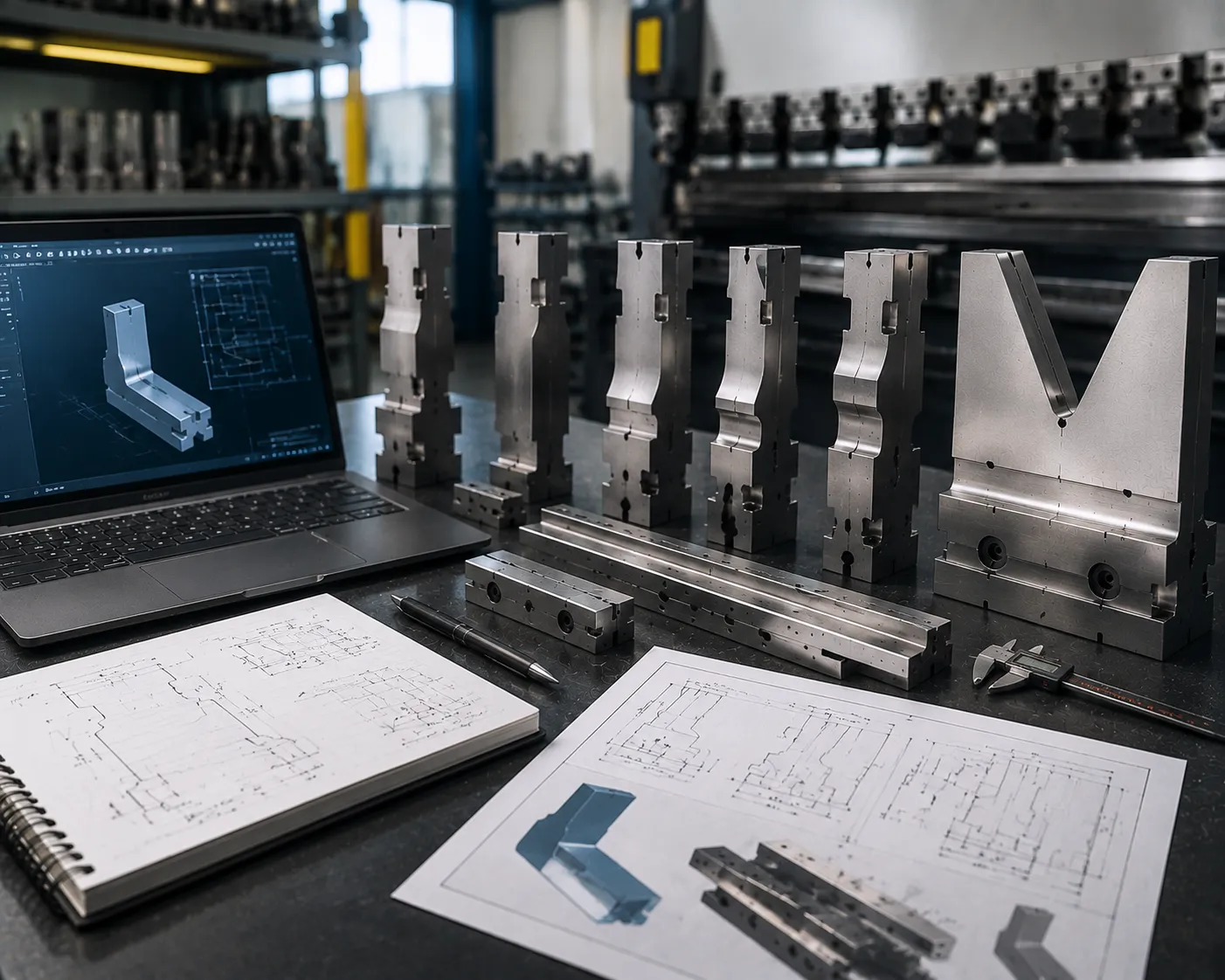

Design-to-Production Workflow
CAMT drives your press brake tooling project from initial engineering drawings to final delivery with speed, precision, and complete quality control.
Requirement Review
We evaluate your CAD drawings, part specs, machine tonnage, and bending geometry to establish exact project parameters.
Technical Optimization
Our tooling engineers analyze springback, tonnage limits, and clearance to refine design feasibility and performance with the right press brake punches.
Material & Design Sign-Off
We match high-grade tool steel to your workload and secure your final drawing sign-off before manufacturing begins.
Precision Machining
Blanks undergo multi-axis CNC machining, deep-case heat treatment, and precision grinding for tight operational tolerances.
Inspection & Delivery
Every tool is CMM-checked for dimensional accuracy and hardness before anti-rust treat, custom crating, and global dispatch.
Unsure About Tooling Feasibility?
Our engineering team reviews your drawings during design evaluation, recommending structural improvements to prevent part distortion, extend tool life, and optimize production costs.
Sample Confirmation
Verify physical fit and profile accuracy with fast-turnaround prototype tooling before committing to full batch runs.
Drawing Optimization
Identify interference risks early and optimize tip radii to streamline production and eliminate costly re-tooling.
Tailored Suggestions
Get expert guidance on steel selection, surface hardening, and sectioning to fit your press brake brand and material grade, including gooseneck punches for tight forming conditions.
Engineering Feedback
Work directly with tooling designers to resolve tough bending constraints, deep channel depths, or tight inner radii.
Materials, Heat Treatment & Precision Standards
CAMT manufactures press brake tooling with CNC machining and controlled heat treatment for stable performance.
Custom Tooling Built for Severe Duty
Our engineering team selects premium high hardness tool steel to deliver maximum durability and wear resistance. Every tool undergoes multi-axis CNC machining, deep precision grinding, and vacuum heat treatment to maximize service life for press brake punches and eliminate structural weaknesses.
Reduced Wear
Extends surface life under high-tonnage forces.
Consistent Batch
Uniform bending accuracy across every run.
Extended Intervals
Minimizes setup downtime and maintenance.
Manufacturing Precision Matrix
ISO Standard| Parameter Specification | Standard Control Tolerance |
|---|---|
| Hardness Range | 52 – 60 HRC (Controlled Heat Treatment) |
| Length Tolerance | ±0.01 mm / Meter |
| Angle Precision | ±15′ (Precision Grinding Press Brake Tooling) |
| Surface Roughness | Ra 0.4 µm (Micro-Polished Finish) |

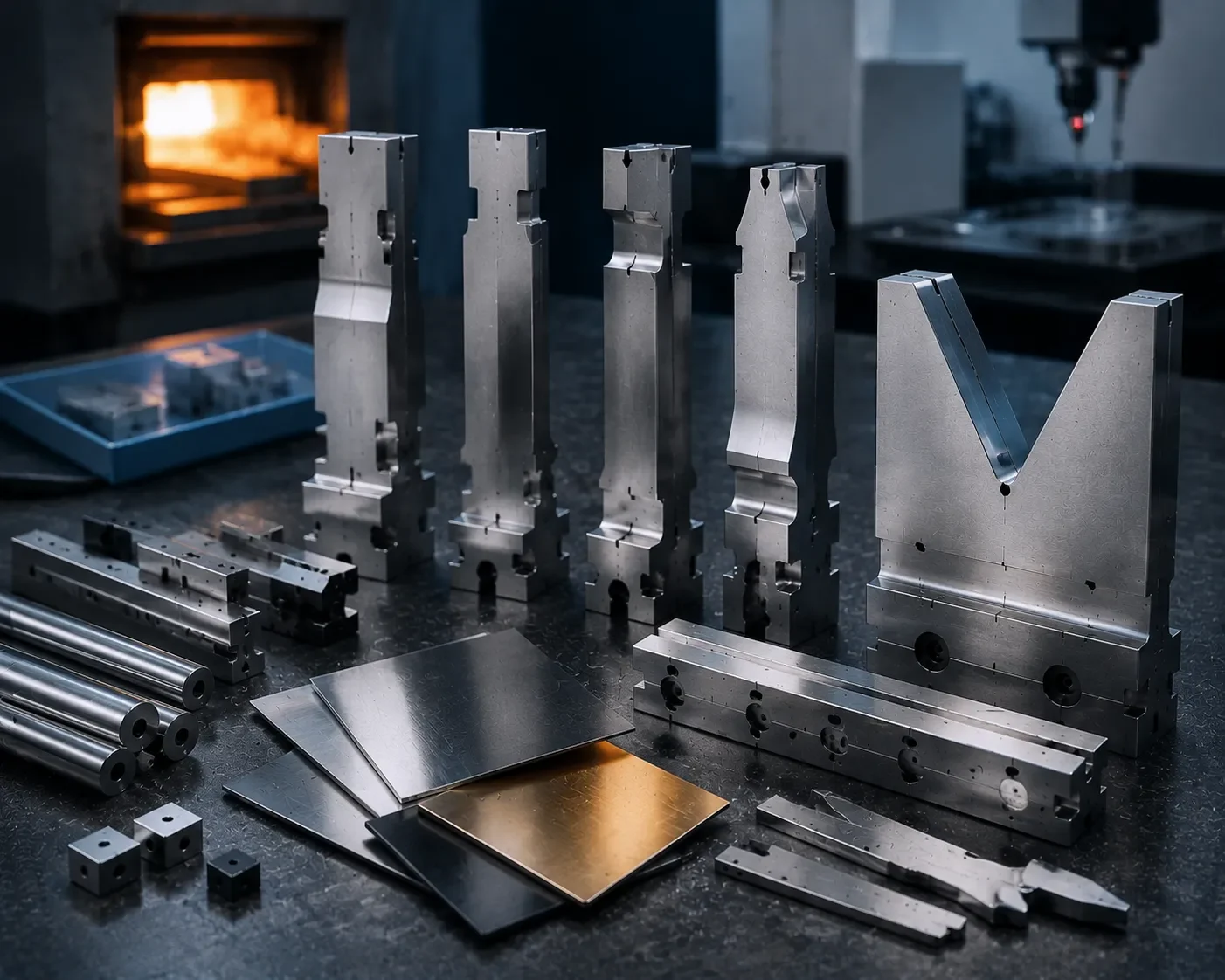

High Hardness Tool Steel
We source heat treated tooling steel formulated for maximum toughness and anti-chipping performance under continuous duty cycle conditions.
Quality Assurance Standards
Precision Machining & Grinding
Computer-controlled precision grinding guarantees exact shoulder heights and zero gap tolerances for press brake punches during segment alignment.
Deep Zone Hardening
Controlled heat treatment achieves uniform core strength and hardness stability to prevent deformation under peak tonnage.
Surface Wear Resistance
Specialized surface treatments dramatically increase friction resistance and prevent galling during heavy sheet bending.

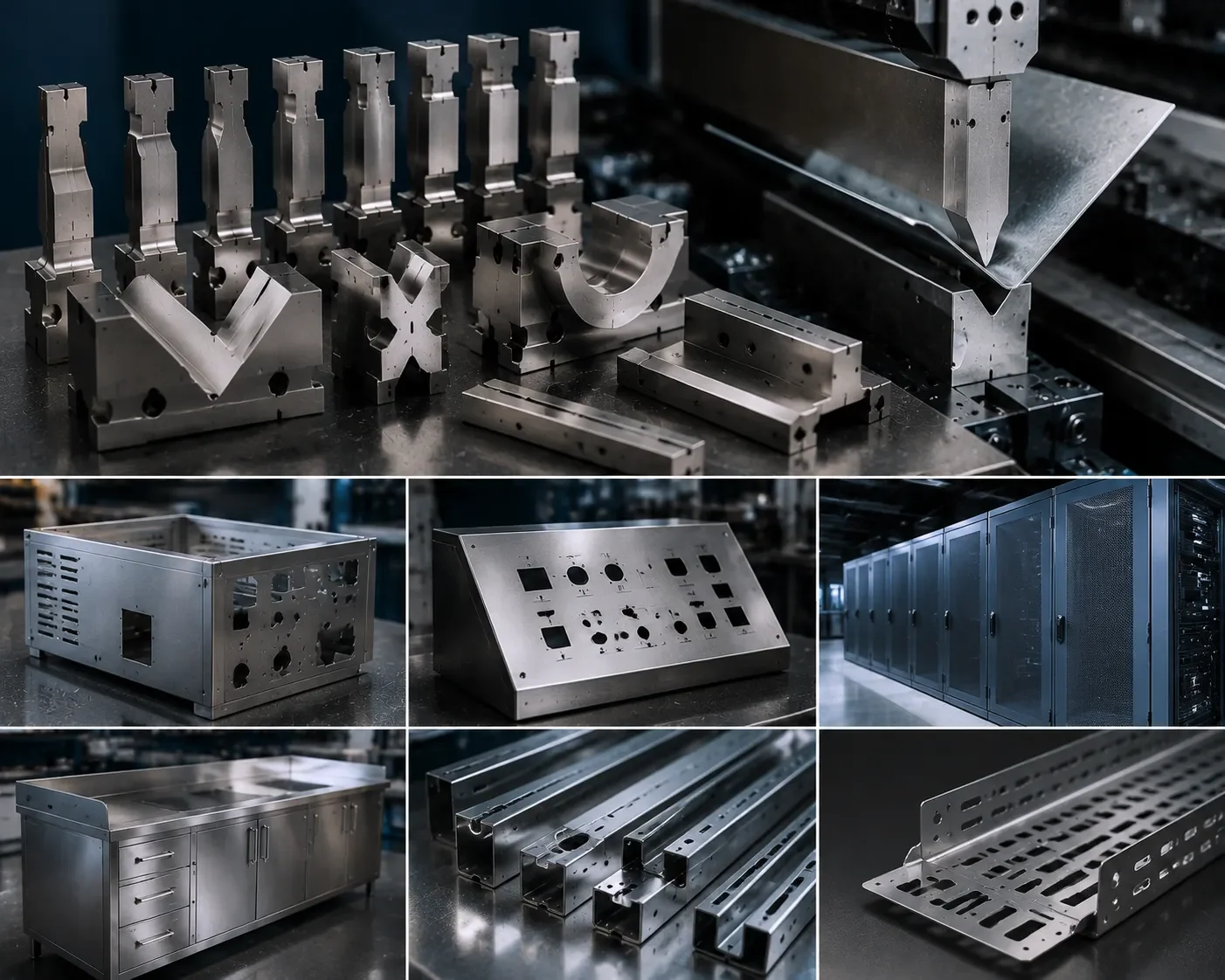

Engineered Tooling Built for Your Specific Application
CAMT delivers custom press brake tooling for manufacturers across cabinets, HVAC, elevator, construction, and automotive sectors, matching exact material traits and machine setups.
Sheet Metal Fabrication
Typical Parts
Precision enclosures, mounting brackets, control panels, and metal chassis
Challenge Points
Frequent job changeovers, varying sheet thicknesses, and maintaining high angle consistency across large production runs.
Recommended Customization
Quick-change modular tooling with precision ground press brake punches and universal dies.
Stainless Steel Processing
Typical Parts
Commercial kitchenware, pharmaceutical housings, and architectural cladding
Challenge Points
High material springback, rapid tool wear, and surface marring on polished cosmetic faces.
Recommended Customization
Anti-marking radius dies and deep-hardened tool steel punches for wear-resistant bending.
Electrical Cabinets
Typical Parts
Switchgear housings, server racks, electrical boxes, and cabinet doors
Challenge Points
Tight return flanges, deep channel interference, and maintaining straightness along full-length bends.
Recommended Customization
Tall gooseneck punches paired with deep sash dies for intricate clearance profiles.
Elevator Manufacturing
Typical Parts
Cabin wall panels, door jambs, ceiling frames, and guide rail supports
Challenge Points
Complex multi-bend contours requiring scratch-free finishes on high-visibility aesthetic panels.
Recommended Customization
Sectionalized precision punches with custom offset geometries for flawless panel forming.
HVAC Systems
Typical Parts
Ductwork flanges, air handler casings, damper blades, and structural frames
Challenge Points
High-volume batch runs demanding standardized tool clamping and rapid, repeatable seam alignment.
Recommended Customization
Specialized multi-V and ribbing dies engineered for high-speed automated production.
Construction & Automotive
Typical Parts
Structural channels, heavy chassis members, reinforcement brackets, and beams
Challenge Points
Bending high-strength, thick plate alloys under severe tonnage while preventing tool deformation.
Recommended Customization
Heavy-duty, heat-treated alloy steel tooling designed for extreme tonnage load capacities.
Need a Custom Tooling Geometry for Your Application?
CAMT engineers evaluate your part drawings, material grades, and press brake specifications to deliver optimized custom tooling solutions. Reduce setup times and enhance bend precision for your production line.
Quality Assurance, Packaging & Global Delivery
CAMT serves global industrial buyers with inspection-based quality control and export-ready delivery for press-brake tooling, minimizing procurement risk and ensuring uninterrupted production continuity.
Precision Quality Control as a Global Standard
As a trusted quality inspection tooling supplier, CAMT enforces rigorous multi-stage verification protocols across every production run. From raw material validation to final dispatch, our strict tolerance control guarantees that your global export press brake punches and tooling perform accurately from day one.
Reduced Procurement Risk: Every batch undergoes full dimensional and structural verification to ensure immediate compatibility with your machines.
Transparent Documentation: Comprehensive inspection certificates and material traceability reports accompany every international shipment.
Multi-Point Inspection
- Dimensional precision & tolerance verification
- Core hardness & material grade testing
- Punch and die assembly alignment checks
- Surface finish & edge defect inspection
Export-Grade Packaging
- VCI anti-rust coating & vacuum sealing
- High-impact shock absorption layering
- Project-coded labeling for easy sorting
- Reinforced wooden crates for long transit
Global Delivery Logistics
- Fast delivery OEM tooling workflows
- Batch order production scheduling
- Export-compliant fumigated timber crating
- End-to-end international freight tracking
Technical & Service Support
- Engineering advice for tooling setup
- Post-delivery adjustment assistance
- Rapid response for spare & replacement parts
- Long-term OEM & ODM partnership support
Inspection-to-Shipping Workflow
A structured 4-step process ensuring total precision and damage-free transit for every custom tooling order.
Quality Inspection
Dimensional, hardness, and fit tests verified against approved technical drawings.
Protective Treatment
Anti-rust oil application, moisture-barrier sealing, and edge protection wrapping.
Export Crating
Heavy-duty wooden enclosures with project-coded tags and clear handling markers.
Global Dispatch
Streamlined customs documentation, priority freight handling, and tracking.
Frequently Asked Questions & Project Inquiries
Find technical details on custom press brake tooling, OEM manufacturing capabilities, and drawing evaluations. CAMT engineers practical bending solutions engineered for your production line.
What information is needed for a custom press brake tooling quote?
To provide an accurate technical quote, please share your 2D/3D part drawings, sheet metal material type and thickness, required bending angles, machine tonnage, and press brake clamping style (such as European, American, or Wila/TRUMPF).
Can you optimize tooling based on my drawing?
Yes. CAMT application engineers analyze your bend sequences and part geometry to optimize punch radii, relief clearances, and segment lengths with the right press brake punches, preventing component collision and maximizing tool life.
Do you support OEM and ODM production?
As a specialized press brake tooling manufacturer, we provide complete OEM and ODM services. We produce custom punches and dies manufactured directly to your proprietary drawings, brand branding, or machine builder specifications.
What materials and heat treatment options are available?
We process premium tool steels including 42CrMo, Cr12MoV, and high-carbon alloys. Depending on wear requirements, tools undergo deep induction hardening, core heat treatment, or specialized surface nitriding for maximum durability.
How long does custom tooling development take?
Standard modifications typically ship within 10 to 15 business days. Fully engineered custom profiles average 3 to 4 weeks, covering drawing sign-off, precision CNC machining, heat treatment, and final grinding inspection.
Can you supply tooling for different press brake brands?
Yes. We manufacture custom tools compatible with major press brake brands, including Amada, TRUMPF, Bystronic, LVD, Durma, and Yawei, as well as specialized or custom-designed tang adapters. For deep-forming applications, we also supply gooseneck punches.
Ready to Develop Your Custom Press Brake Tooling?
Share your part drawings, tooling requirements, material information, or machine specifications. CAMT engineers will evaluate feasibility and provide a practical custom tooling solution.
Step 1
Drawing Review
Step 2
Engineering Validation
Step 3
Custom Quote
Start Your Custom Project
Our engineers will review your requirements and recommend the most suitable tooling design.
Confidential drawing handling · Engineering support · Global delivery
