What Is Press Brake Tooling?
Press brake tooling comprises the specialized upper press brake punches and lower dies fitted to press brakes to form sheet metal into exact profiles. At CAMT, we manufacture precision-ground press brake tools engineered to deliver stable, repeatable bending accuracy across demanding production environments.
Definition and Role in Modern Metal Fabrication
In modern sheet metal forming, press brake tools are critical force-transmitting components. Mounted on hydraulic, electric, or servo-electric press brakes, these tools shape raw metal sheet into defined angles, channels, and complex geometries. High-performance tooling ensures consistent part dimensions, minimizes material scrap, and keeps automated fabrication lines running efficiently.
The Punch and Die Working Principle
Precision bending relies on the controlled interaction between two essential tooling elements:
The Upper Punch
The male tool secured to the press brake ram. It drives down into the sheet metal with precise depth and tonnage to initiate the bend.
The Lower Die
The female tool stationary on the bed. Featuring V-shaped, U-shaped, or specialized grooves, it supports the material and dictates the final bend geometry.
Why Quality Tooling Matters for Bending Accuracy
Achieving tight bend tolerances requires uniform tool hardness, micro-finish surfaces, and exact radius profiles. Inferior or worn tooling leads to angle variations, unpredictable springback, and surface marring. CAMT press brake tools undergo deep thermal heat treatment and precision CNC grinding to ensure structural rigidity, long service life, and reliable repeatability over extended runs.

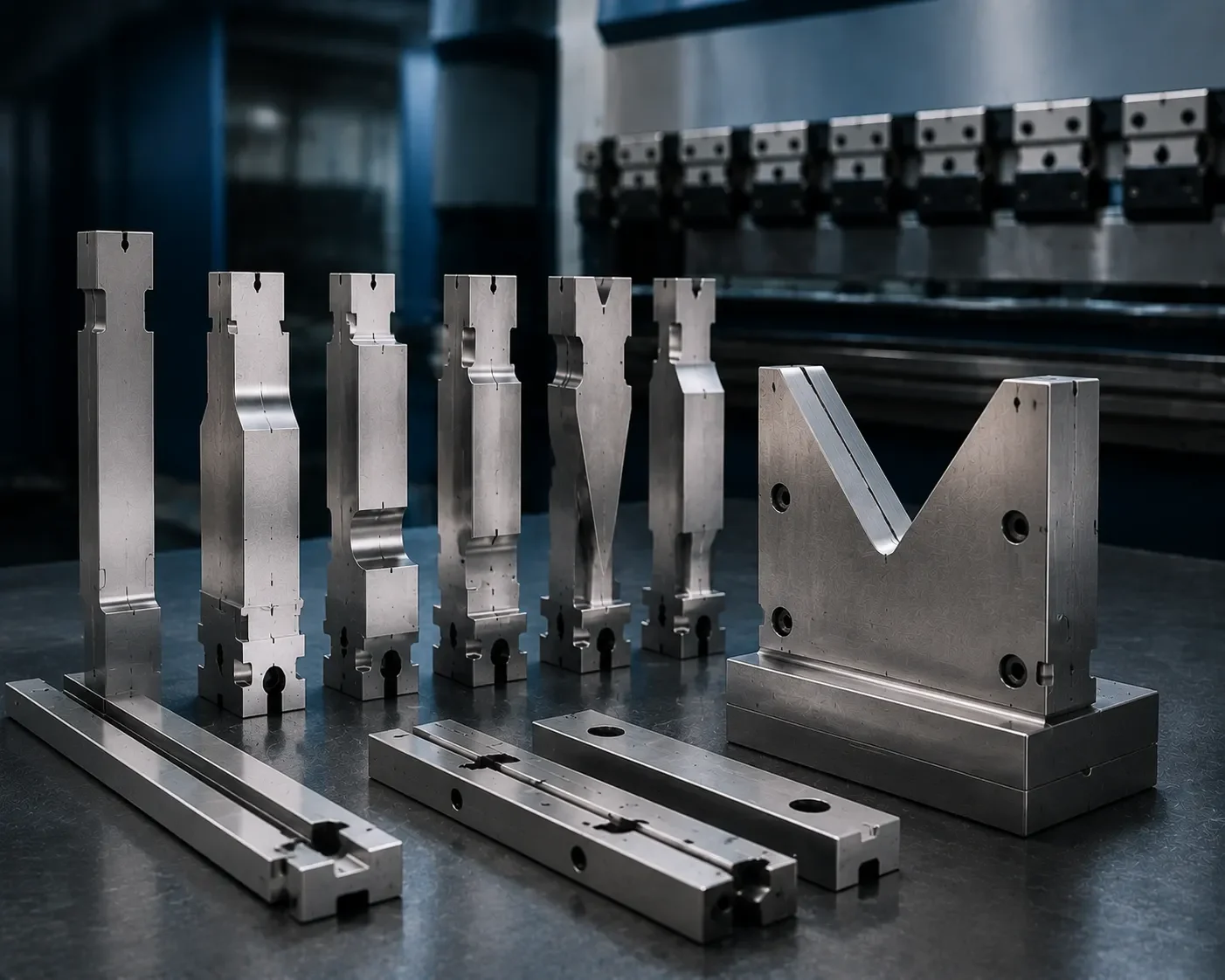

CAMT precision punch and die set for accurate sheet metal bending.
Standard vs. Custom Tooling
Includes versatile gooseneck punches, acute angle punches, and multi-V die blocks designed for everyday high-mix fabrication.
Engineered for specialized part geometries, narrow return flanges, or heavy-duty structural profiles demanding unique punch profiles and die openings.
Explore Press Brake Tooling Solutions
CAMT provides precision-engineered punches and dies for CNC press brake applications, covering standard production needs and custom bending requirements.
Press Brake Punches
Precision upper tooling engineered for accurate bending, repeatability, and long service life. CAMT supplies standard punches, gooseneck punches, radius punches, and custom profiles for various press brake systems.
Press Brake Dies
High-strength lower tooling designed for stable bending accuracy, reduced marking, and reliable performance across different materials, thicknesses, and production environments.
Typical Press Brake Bending Operations
Selecting the appropriate bending method depends on sheet thickness, material type, and target tolerances.
Air Bending
The punch presses the sheet into the die cavity without touching the die bottom. This versatile method requires lower tonnage and allows multiple bend angles with a single tool set.
Bottoming
The metal sheet is forced against the surfaces of the V-die cavity. Bottoming provides tighter angle consistency and reduces springback for high-precision component production.
Coining
Extremely high force penetrates the punch tip into the sheet metal, imprinting the exact tool radius. Coining eliminates material springback completely but demands substantial machine tonnage.
Engineered Tooling for Superior Bending Precision
CAMT manufactures precision press brake punches, dies, and custom tooling solutions engineered for accurate bending, extended tool life, and reliable production performance.

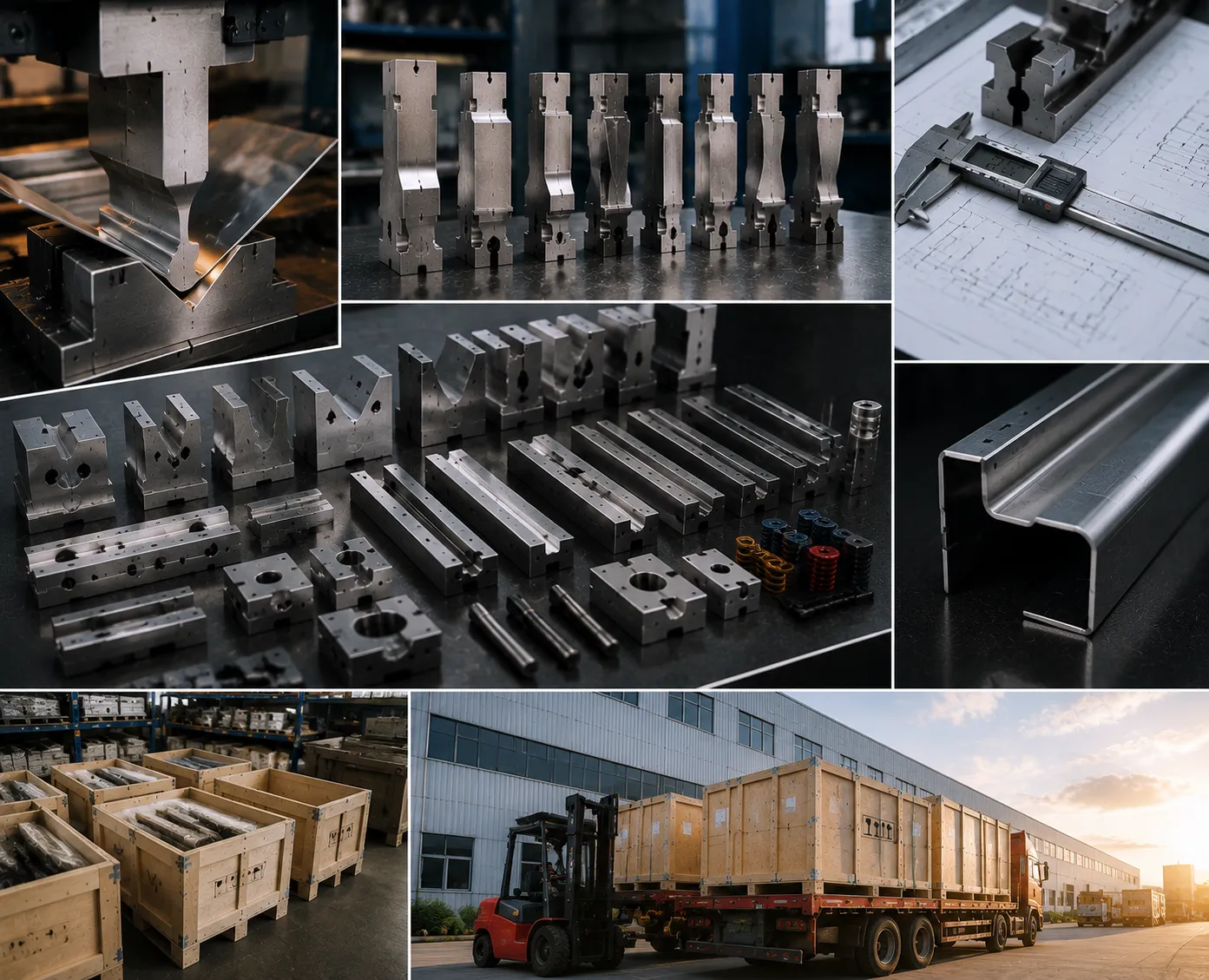

Press Brake Tooling Categories
CAMT provides a complete press brake tooling portfolio engineered for high accuracy, minimal wear, and versatile sheet metal bending operations.
Press Brake Punches
Crafted from high-hardness tool steel and precision-ground to strict tolerances, CAMT press brake punches ensure repeatable bend angles and long tool life.
- Gooseneck Punches: Designed for deep channel profile forming and return flange clearances.
- Radius Punches: Form smooth, consistent large-radius bends without cracking sensitive sheet materials.
- Offset Punches: Execute precise Z-bends and offset steps in a single stroke.
Press Brake Dies
CAMT supplies precision-ground press brake dies tailored to various sheet thicknesses and machine specifications, minimizing setup time and tool deformation.
- V Dies: Single-V, double-V, and multi-V configurations for versatile standard air bending.
- Hemming Tools: Two-stage tooling systems designed for pre-bending acute angles and flattening closed hems.
- No-Mar Inserts: Specialized die protective solutions to eliminate surface marking on polished metals.
Custom Press Brake Tooling
When standard catalog profiles do not meet your bending requirements, CAMT engineers custom press brake tools directly from your component drawings and material specs.
Explore Custom Press Brake Tooling →Suitable Materials
Stainless steel, mild steel, aluminum alloys, copper, and high-tensile sheet.
Typical Applications
Electrical cabinets, HVAC components, automotive structural parts, and enclosure panels.
How to Choose Press Brake Tooling
Optimize your sheet metal bending operations with precise press brake punches selection for maximum accuracy, longevity, and efficiency.
Precision Bending Fundamentals
Matching the correct punch and die combination ensures optimal tonnage distribution, precise inner bend radius, and zero material deformation. For clearance-critical parts, gooseneck punches can help maintain part geometry.
Material Properties
Tensile strength and yield limits directly impact tonnage demands, springback behavior, and required punch tip radii.
Sheet Thickness
Accurate sheet thickness measurement governs die width selection, ensuring consistent bend radii without structural material failure.
Bending Angle
Define air bending, bottoming, or coining requirements to select matching punch profile angles and die degrees.
Machine Type
Verify clamping styles (European, American, New Standard) and stroke constraints for complete bending compatibility.
V Opening Sizing
Calculate proper die opening—typically 8x material thickness—to maintain correct inner bend radius and tonnage limits.
Production Volume
High-run operations demand hardened tool steel and precision-ground tooling profiles for long-term wear resistance.
Need Expert Technical Assistance?
CAMT engineers assist customers with tooling selection, custom die configurations, and bending compatibility analysis to maximize your production throughput, including applications that call for radius punches.

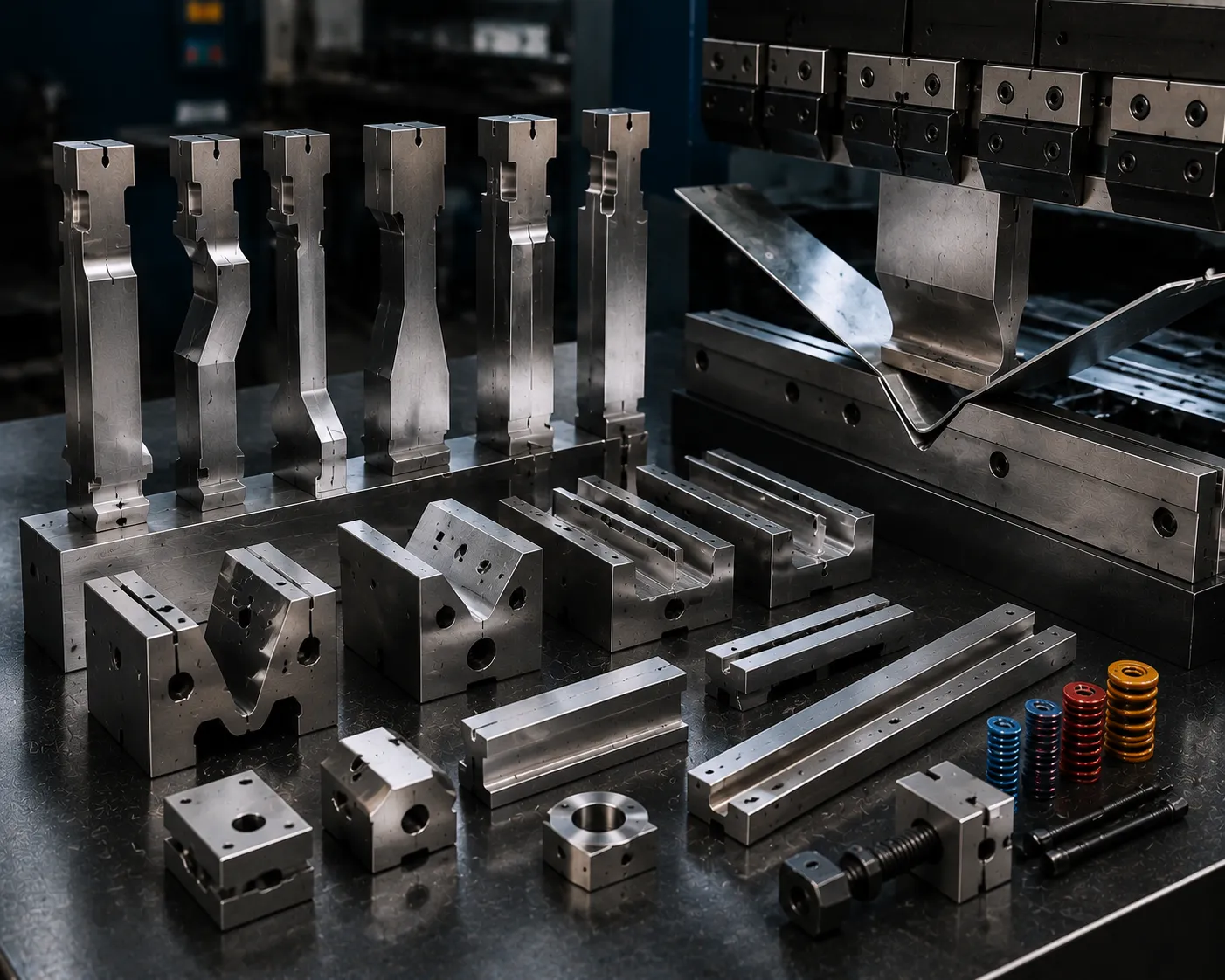

Applications of Press Brake Tooling Across Critical Industries
CAMT manufactures high-precision sheet metal fabrication tooling, including press brake punches, engineered to solve complex bending challenges, boost production yields, and minimize downtime across global manufacturing sectors.
Sheet Metal Fabrication
High Precision & Repeatability
Industry Challenge
Unstable bend angles and rapid tool wear during high-volume production runs.
CAMT Solution
Precision-ground punches and dies crafted from premium tool steel to deliver exact tolerances and consistent bend angles across custom sheet metal components.
Stainless Steel Bending
Heavy-Duty Strength & Surface Protection
Industry Challenge
High tensile resistance causes severe tool galling, rapid die wear, and unsightly surface scratching.
CAMT Solution
Deep-hardened stainless steel bending tooling with anti-galling treatments and radius geometries engineered for mark-free forming.
Electrical Cabinets & Enclosures
Complex Box & Deep Return Bends
Industry Challenge
Tight internal clearances lead to tool interference and collisions during complex multi-bend enclosure forming.
CAMT Solution
Deep gooseneck punches and windowed segmented dies designed to maximize side clearance and streamline four-sided box forming.
Elevator Manufacturing
Long-Panel Uniformity & Straightness
Industry Challenge
Angular deviation and crowning issues along extended door panels and structural cab frames.
CAMT Solution
Precision sectionalized tooling manufactured to ultra-tight tolerances, ensuring seamless alignment and linear consistency over long bend lines.
HVAC Manufacturing
Fast Setups & High-Speed Throughput
Industry Challenge
Frequent tool changeovers for varied sheet gauges and duct profiles bottleneck production speed.
CAMT Solution
Versatile HVAC press brake tooling including large-radius dies, hemming tools, and quick-change clamping systems that accelerate turnaround times.
Automotive & Heavy Machinery
Heavy-Plate Structural Forming
Industry Challenge
Extreme tonnage demands during high-tensile alloy bending lead to premature tool fatigue or structural failure.
CAMT Solution
Heavy-duty V dies and punches heat-treated for maximum core toughness, designed to safely withstand high tonnage stresses.
Engineered to Solve Your Toughest Bending Challenges
From thin-gauge precision enclosures to heavy structural plates, CAMT press brake tooling delivers uncompromised accuracy, reduced setup times, and extended service life across every bending application. For specialized bends, our radius punches support consistent forming performance where smooth contours matter most.

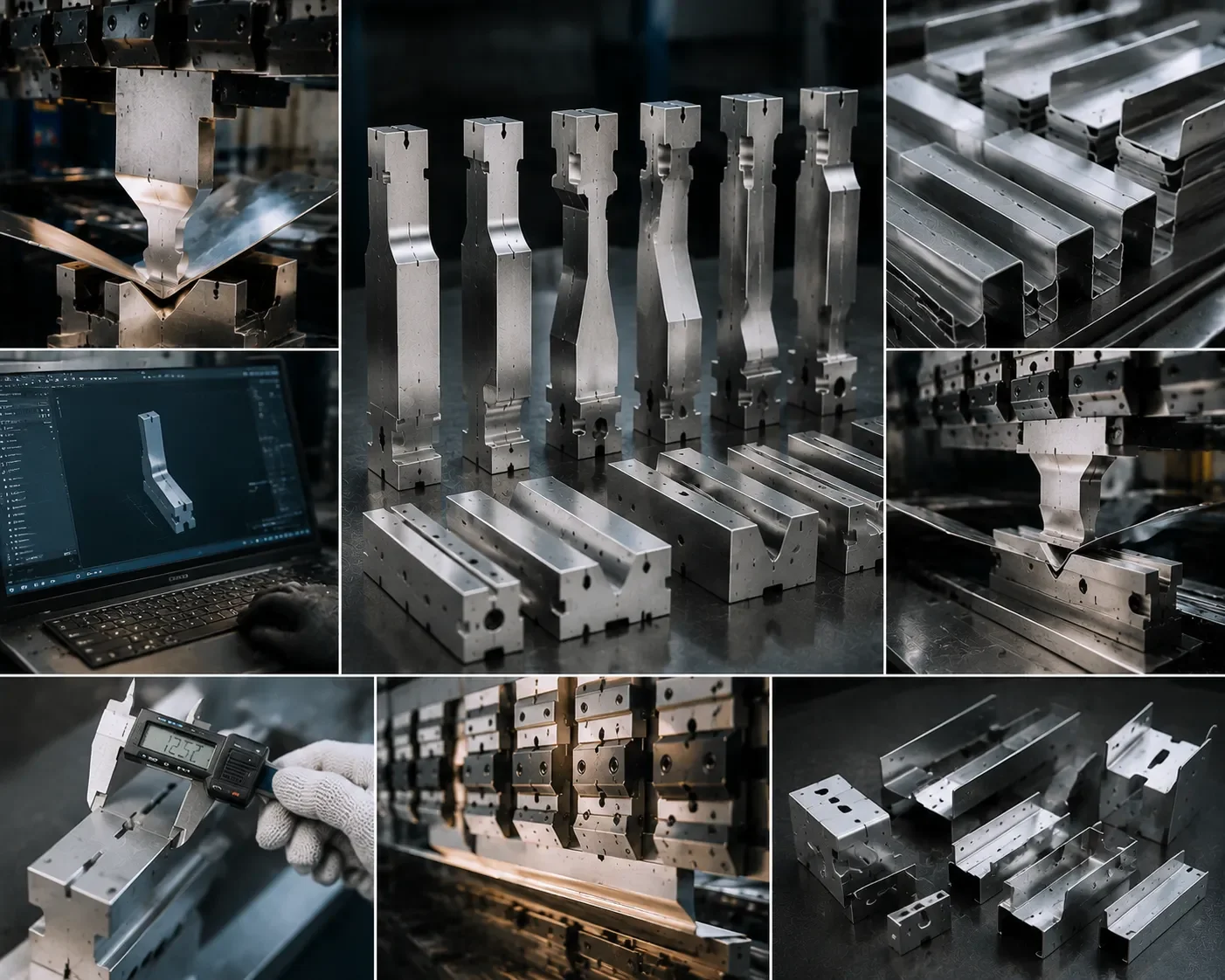

Precision Manufacturing & Strict Quality Control
As a trusted manufacturer of press brake punches, CAMT maintains strict process controls across every production step to ensure high accuracy, repeatable performance, and extended tool life.
High-Grade Tool Steel Selection
We source premium alloy tool steels engineered to withstand extreme tons per meter, heavy shock loads, and continuous abrasion during demanding sheet metal bending operations.
Multi-Axis CNC Machining
Advanced CNC machining centers rough-cut complex punch and die profiles, maintaining exact cross-sectional geometry for both standard and custom tooling geometries.
Deep Hardening Heat Treatment
Precision thermal cycles and selective induction hardening optimize core toughness and working-edge hardness, maximizing wear resistance without cracking under pressure.
Ultra-Precision Grinding
High-precision profile grinding achieves tight tolerances on working radii and shoulder surfaces, ensuring seamless tool alignment and precise bend angle repeatability.
Full Inspection Protocol
Every punch and die undergoes CMM dimensional checks, Rockwell hardness testing, and profile verification prior to packing to guarantee zero defect delivery.
Heavy-Duty Export Packaging
Anti-corrosion oil coatings, protective edge wrapping, and reinforced wooden crates preserve critical working surfaces during international sea and air transit.
Engineered Tooling Built for Demanding Bending Applications
At CAMT, we combine state-of-the-art CNC grinding technology with rigorous quality control at every phase of production. From raw alloy selection to final profile inspection, our end-to-end manufacturing process minimizes machine setup times and boosts overall bending productivity.
Custom Press Brake Tooling
CAMT delivers custom press brake tooling engineered to overcome complex part geometries, tight tolerances, and demanding sheet metal bending applications with the right press brake punches.
A Proven 4-Step Process for Specialized Tooling Development
From initial part drawing optimization to full OEM tooling production, our application engineers partner with you to prevent bend interference, control springback, and extend tool life.
1. Drawing Review
Thorough CAD analysis to evaluate bend sequences, clearance limitations, material thickness, and required tonnage.
2. Drawing Optimization
Engineering custom punch and die profiles, including offset punches, to reduce setup complexity, lower tooling costs, and enhance repeatability.
3. Prototype Validation
Producing test tooling or sample bends to verify angle accuracy, flange dimensions, and physical fitment before mass production.
4. Full Production
Precision grinding and deep heat treatment of tool steel sets for continuous, heavy-duty industrial production.
Technical Support & OEM Capability
CAMT works with global sheet metal manufacturers to develop custom OEM tooling matched precisely to machine specifications and production targets, including gooseneck punches for demanding bend profiles.
Complex Part Geometries
Tailored punches and dies designed specifically for narrow return flanges, deep channels, offset bends, and non-standard radiuses, including radius punches for smooth, consistent forming.
OEM & Machine Compatibility
Custom mounting tangs and clamp systems engineered to fit leading press brake brands without compromising alignment or safety.
Direct Engineering Assistance
Receive expert consultation on material springback, tool steel selection, surface hardening options, and tonnage calculation.
Frequently Asked Questions
Clear answers regarding press brake tooling selection, custom engineering, material compatibility, and lead times.
What is press brake tooling?
Press brake tooling comprises precision-ground press brake punches and dies installed on a press brake to form sheet metal into specific profiles. It dictates bend accuracy, angle consistency, and surface quality across production runs.
How do I choose the right press brake tooling?
Tooling selection depends on material type, sheet thickness, required bend radius, internal angle, and your machine's clamping style and tonnage limits. Proper V-opening calculation is essential to prevent tooling overload.
Which tooling is best suited for bending stainless steel?
Bending stainless steel requires high-hardness, deep-hardened tool steel (such as 42CrMo) to withstand increased tonnage. Specialized radius geometries and polished working surfaces help prevent galling and sheet marking.
Can CAMT manufacture custom tooling for complex profiles?
Yes. CAMT engineers evaluate your CAD drawings, simulate the bending sequence, and manufacture custom punches, V dies, or offset tools tailored to complex or tight-clearance geometries.
What are the lead times for standard vs. custom tooling?
Standard European, American, and Trumpf-style tooling typically ships within 3 to 5 business days. Engineered custom tooling generally carries a lead time of 2 to 4 weeks depending on profile complexity and heat treatment requirements.
Which press brake brands are compatible with CAMT tooling?
CAMT manufactures precision tooling compatible with major OEM clamping systems, including Amada, Trumpf, Bystronic, LVD, Cincinnati, Accurpress, and Prima Power.
Need Engineering Support for Tool Selection?
Send us your part drawings, material specifications, and machine model. CAMT application engineers will verify tonnage limits and recommend the optimal tooling setup.
Free Application & Bending Feasibility Review
Ready to Order Precision Press Brake Tooling?
Share your tooling requirements, machine model, material thickness, or drawings. CAMT engineers will review your application and provide a suitable punch and die solution for your bending process.
Response
24h Engineering Review
Capability
OEM & Custom Tooling
Service
Global Delivery
Get Your Tooling Recommendation
Send your requirements and let our engineers select the right tooling configuration.
Request a QuoteNeed special geometry? Explore Custom Tooling
