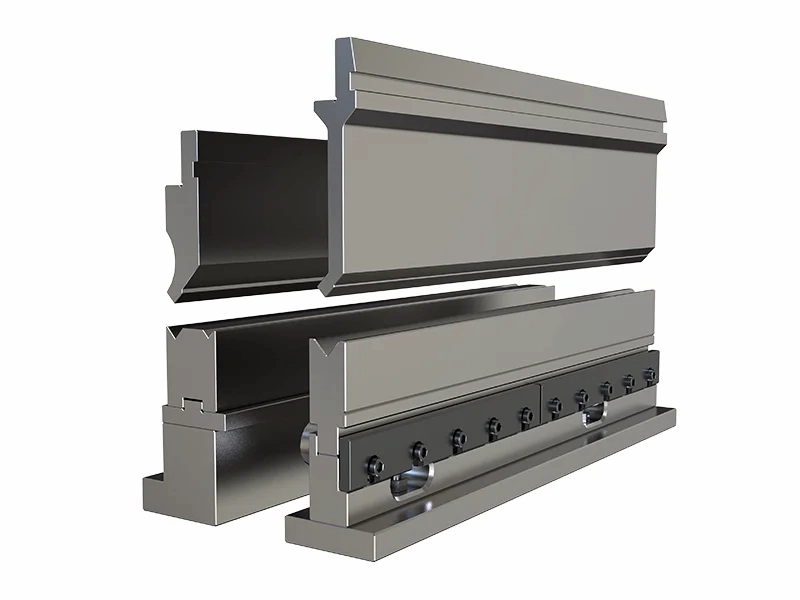

AMADA Compatible Tooling Overview
Maximize productivity on your AMADA press brakes with CAMT precision-engineered tooling products, punches, dies, and custom CNC tooling solutions tailored to your bending requirements.

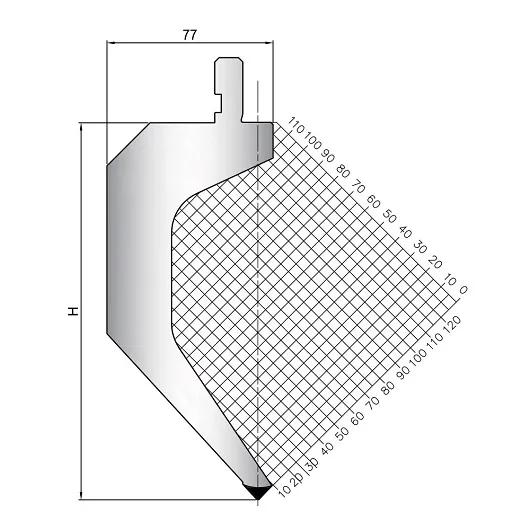

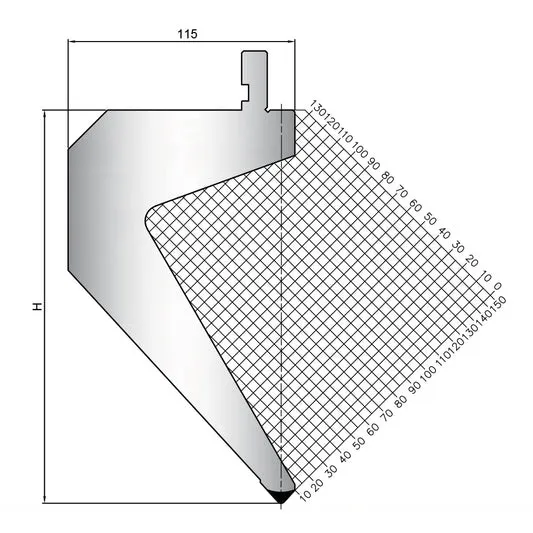

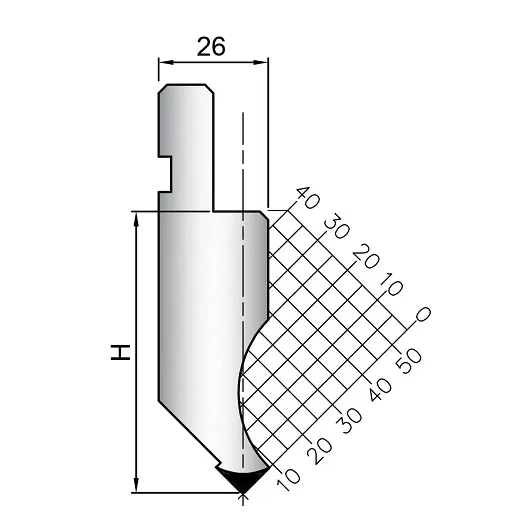

Upper Punches
High-precision press brake punches engineered for exact profile accuracy, smooth air bending, and reliable compatibility with AMADA style clamping systems.
- Straight, gooseneck & sash profiles
- Deep-frequency induction hardened
Lower Dies
Precision-ground bottom dies built to minimize sheet marking and ensure seamless seating in standard AMADA press brake beds.
- Self-centering mounting alignment
- High-grade chromium alloy steel

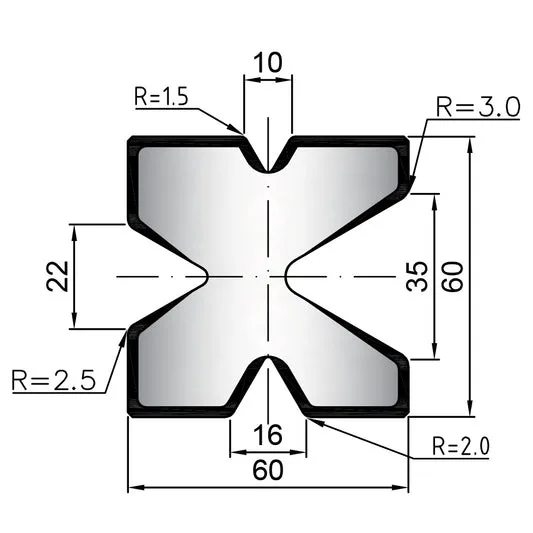

Single & Multi-V Dies
Versatile V-opening configurations optimized for diverse sheet metal thicknesses, tight inner radii, and repeatable bend angles.
- Optimized V-widths for various gauges
- Reduced setup time & quick changeover
Custom Bending Tools
Tailor-made tooling geometries engineered for complex offset bends, non-standard angles, and demanding OEM sheet metal applications.
- Engineering & drawing verification
- Customized profile manufacturing
Engineered for Exact AMADA Machine Specifications
CAMT delivers precise compatibility with AMADA press brakes. Explore our press brake tooling by matching machine tonnage limits, shut heights, and tang styles, our tooling eliminates fitting errors, protects machine components, and ensures consistent bending accuracy across production runs.
100%
Interface Compatibility
< 0.01 mm
Grinding Precision Tolerance
AMADA Tooling Selection & Compatibility Matrix
Match tooling categories directly to your material thickness and machine configuration.
| Tooling Category | AMADA Clamping System | Target Material Thickness | Key Bending Advantage |
|---|---|---|---|
| AMADA Style Punches | One-Touch / Standard Mechanical / Hydraulic | 0.5 mm – 12.0 mm | High angle consistency and reduced setup times |
| Standard Dies | 2V Rail & Standard Bed Slots | 0.5 mm – 10.0 mm | Precise alignment for air bending and bottoming |
| Single & Multi-V Dies | Universal Die Holders & Rail Adaptors | 1.0 mm – 25.0 mm+ | Quick V-opening changeovers for flexible job batches |
| Custom Bending Tooling | Engineered Adapters / Machine-Specific | Application Dependent | Single-stroke complex profiles and reduced scrap rates |
Why Leading Fabricators Choose CAMT Amada Tooling
Engineered for high-volume sheet metal fabrication, providing precision press brake tooling that minimizes rework and maximizes operational uptime.
Precision Ground Consistency
Our CNC bending tools undergo strict precision grinding to deliver exact tolerances and unwavering angular consistency across every production run.
- Strict dimensional tolerances
- Uniform bend angles
Extended Service Life
Utilizing high-hardness premium steel and advanced heat treatment processes, our punches and dies resist wear to lower replacement frequencies.
- Deep-hardened wear zones
- Reduced long-term replacement costs
Custom & OEM Support
Tailored to handle complex geometries and custom parameters, we manufacture specialized tools based on your specific component blueprints.
- Tailored punch and die solutions
- Optimized for complex parts
Rapid Logistics & Supply
Our optimized manufacturing pipelines and strategic stock levels prevent sudden downtime, ensuring tools arrive exactly when your workshop needs them.
- Dependable fulfillment timelines
- Minimized machine downtime
Maintain Production Efficiency & Batch Consistency
CAMT provides fully compatible Amada press brake tooling systems built to protect your high-volume manufacturing investments. By combining engineered metal durability with exact specs, we help operators shorten adjustment times and achieve predictable results every single shift.
Optimized
Tooling Service Life
Reduced
Setup and Tuning Times
AMADA Tooling Selection Guide
Streamline your setup with CAMT's four-step selection process for press brake tooling. Match your AMADA press brake parameters, material specs, and bend profiles to achieve precise, repeatable bending.
Machine & Clamping Interface
Verify your AMADA machine model, quick-change clamping style, max tonnage limits, and shut height requirements.
- One-Touch & Standard AMADA Style
- Tonnage Capacity Verification
Material & V-Opening
Evaluate sheet metal thickness, tensile strength, and springback allowances to determine the correct V-die opening.
- Carbon Steel & Stainless Steel
- Aluminum Alloys & Copper Sheet
Punch & Die Profiles
Select optimal punch tip radii, angles, and gooseneck clearances with the right press brake punches to form precise bend angles without part collision.
- Standard, Gooseneck Punches & Acute Punches
- Air Bending & Bottoming Dies
Steel Grade & Hardening
Specify specialized heat treatment, deep hardening, or anti-galling coatings based on your volume and material hardness.
- Laser-Hardened Working Surfaces
- Nitrided & Specialty Coatings
Optimize Tooling Life & Bending Accuracy
Choosing the right CAMT tooling setup reduces press brake stress, minimizes tool wear during high-volume runs, and maintains uniform angular consistency across every part.
Need Help Matching Your AMADA Setup or Custom Drawings?
Upload your part drawings, worn tool specs, or machine parameters to receive direct tooling recommendations from CAMT engineers.
AMADA Tooling Applications Across Metal Fabrication Industries
From high-volume sheet metal enclosures to complex aerospace brackets, discover how CAMT precision punches and dies drive repeatability on AMADA press brakes.
Electrical Enclosures & Cabinets
Form tight return bends and seamless box corners on mild steel and stainless sheets with minimal surface marking for electrical cabinets.
Eliminating sheet distortion and coating damage on visible outer flanges during multi-bend operations.
HVAC & Air Handling Units
Maintain strict angle consistency across long galvanized duct panels and structural frames in sheet-metal fabrication workflows on continuous production runs.
Preventing angular variation and tool deflection when bending extended sheet lengths.
Automotive & Heavy Brackets
High-tonnage precision punches and V dies engineered to handle high-strength alloys and variable springback material batches.
Absorbing high shock loads while maintaining tight dimensional tolerances on heavy-gauge stock.
Appliance & Custom OEM Sheet Metal
Segmented custom press brake tooling setups support quick changes for short prototypes, custom profiles, and multi-radius geometries.
Reducing setup changeover times between low-volume, high-mix job shop orders.
Bending Performance Metrics
CAMT AMADA-compatible tooling bridges the gap between intricate part designs and rigorous production cycle times.
"Switching to CAMT precision ground punches eliminated our rework on tight-tolerance electrical cabinet bends."
Manufacturing Process & Quality Control for Amada Tooling
How CAMT combines premium alloy selection, controlled heat treatment, precision grinding, and strict inspection to deliver durable press brake tooling.
Raw Material Verification
High-grade tool steel batches undergo chemical composition testing and ultrasonic flaw detection to ensure internal soundness before machining.
Heat Treatment & Hardening
Deep induction hardening and controlled tempering maximize core toughness and working surface hardness for demanding bending applications.
Precision CNC Grinding
Multi-axis CNC precision grinding produces tight dimensional tolerances on punch tips, V-grooves, and mounting tangs for seamless fitment.
Metrology Inspection
Every punch, die, and V-die undergoes 100% CMM profile checks, radius verification, and trial clamping checks prior to laser marking.
Why Quality Control Matters in CNC Bending
In high-precision sheet metal fabrication, tool inconsistency causes angle deviations and excessive machine setup times. CAMT enforces rigorous quality control standards so every tool seamlessly integrates with your Amada press brakes.
- ✓ Traceable Material Certification: Guaranteed material integrity with mill test reports available for OEM and batch orders.
- ✓ Consistent Bending Angles: Uniform surface grinding prevents angle variation along the entire length of long sheet metal parts.
- ✓ Extended Wear Life: Specialized surface treatments reduce galling when processing stainless steel and aluminum.
Frequently Asked Questions
Clear answers regarding AMADA press brake tooling compatibility, custom engineering, lead times, and V die selection.
How do I verify if tooling is compatible with my AMADA press brake?
CAMT manufactures precision tools designed specifically for AMADA style clamping systems, including standard European style and modified tang configurations. Simply provide your press brake model or current tool drawings, and our engineering team will verify exact fitment and shut height.
Can CAMT engineer custom punches and dies from sample parts or drawings?
Yes. If you need complex bending profiles or non-standard geometries, send us your CAD drawings or physical samples. We provide full DFM feedback, custom press brake tooling design, and precision grinding tailored to your specific application.
Do you supply complete tooling sets including punches, dies, and V dies?
Absolutely. We supply single punches, multi-V dies, single-V dies, acute angle tooling, and complete matched tooling sets engineered for seamless performance across all AMADA CNC bending setups.
What are the standard lead times for standard vs. custom tooling?
Standard AMADA compatible tooling typically ships within 2 to 5 business days. Custom engineered tooling and OEM orders average 3 to 4 weeks, depending on heat treatment and machining complexity.
Does CAMT support OEM private labeling and custom part marking?
Yes. We work with machinery dealers and large fabrication groups, providing laser-etched part numbers, custom logos, specialized anti-rust surface treatments, and tailored packaging.
How do I select the correct V opening based on sheet metal thickness?
As a general standard, the V die opening should equal 6 to 8 times the sheet metal thickness for air bending. For heavy plate or tight radius requirements, contact CAMT technical support to calculate optimal tonnage and springback adjustments.
Need Technical Assistance?
Our applications engineering team is ready to review your bending specifications, calculate tonnage limits, and recommend the exact tooling configuration.
Request Your Amada Tooling Quote Today
Partner with CAMT for fast response times, custom press brake tooling, and dedicated engineering services support.
Fast Technical Quote
Receive comprehensive proposals and tool recommendations within 24 business hours.
OEM & Custom Tailoring
Custom punches, dies, and special profiles manufactured to your exact sheet metal specs.
Application Engineering
Direct consultation to verify tool compatibility, V-opening selection, and tonnage requirements.
Have custom drawings or sample parts?
Send your DXF/STEP files or worn tool measurements to our drawing optimization team for instant matching.
Submit Your Tooling Requirements
Provide your press brake details or project specs to receive a tailored solution and price quote.
