Bystronic Tooling
Bystronic compatible press brake tooling for precision CNC bending and custom sheet metal fabrication solutions
CAMT supplies premium Bystronic-compatible press brake punches and dies engineered for exact fitment, long service life, and repeatable angular accuracy. Whether you require standard replacement tooling or custom-designed profiles, our precision-ground tools optimize machine uptime and eliminate costly bend adjustments.
High-Performance Tooling
Deep-hardened punches and dies designed specifically for Bystronic press brakes.
Why Choose CAMT Bystronic Compatible Tooling
CAMT provides precision-engineered press brake tooling tailored for Bystronic systems. By matching exact equipment tolerances, we help sheet metal fabricators eliminate setup delays, reduce material scrap, and maintain consistent bend angles across every shift.
High-Precision Seating
Tightly controlled tang dimensions ensure rapid clamping and immediate alignment in Bystronic press brake receivers, eliminating tedious manual adjustment during tool setups.
Stable Bending Angles
Precision ground working surfaces deliver uniform force distribution, ensuring tight angle consistency and repeatable accuracy throughout high-volume production runs.
Wear-Resistant Hardened Steel
Manufactured from high-grade alloy tool steel with deep induction hardening on critical contact zones to resist deformation under heavy tonnage bending.
Custom Fabrication per Drawing
Fast engineering response for custom profiles, non-standard radius press brake punches, and special forming dies designed directly to your part drawings.
Overcoming Fabrication Bottlenecks
Generic tooling often suffers from seating play, uneven wear, and unpredictable springback. CAMT precision-matched tooling resolves critical production hurdles to keep your press brakes running smoothly. For clearance-heavy parts, gooseneck punches can help preserve bend access without sacrificing repeatability.
Precision sheet metal shops, enclosure manufacturers, and contract fabricators operating Bystronic CNC press brakes.
Significantly reduces recalibration time, protects machine clamping systems, and maximizes overall bend throughput.

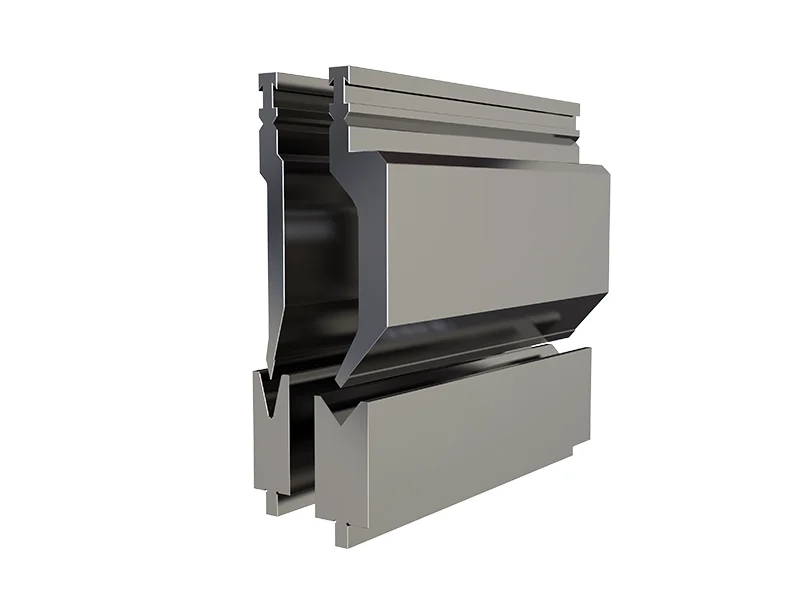

Bystronic Tooling Product Scope
CAMT supplies precision-ground Bystronic-compatible punches, dies, and custom combination sets in our products lineup, engineered to solve complex bending challenges and boost press brake throughput.
Punches / Upper Tools
Bystronic PrecisionEngineered for high-tonnage precision bending, these press brake punches eliminate profile deflection and deliver accurate bend angles across varied sheet metal thicknesses.
Dies / Lower Tools
High DurabilityBuilt to prevent sheet surface marking while ensuring optimal part support and angle repeatability under high production runs.
V Dies / V-Groove Lower Dies
Versatile V-OpeningDelivers balanced load distribution for clean air bending and bottoming across stainless steel, aluminum, and mild steel alloys.
Segmented Tooling
Rapid SetupPrecision pre-cut segment sets allow flexible working widths, drastically shortening changeover times for complex 3D box and cabinet forming.
Special Forming Tools
Advanced ProfilesDesigned for specialized geometry, including hemming, offset, large radius, and single-pass profile forming to eliminate secondary operations.
Custom Tooling Sets
Engineered-to-OrderCustom-engineered tool combinations manufactured directly from customer drawings to overcome challenging clearance constraints and non-standard bends.

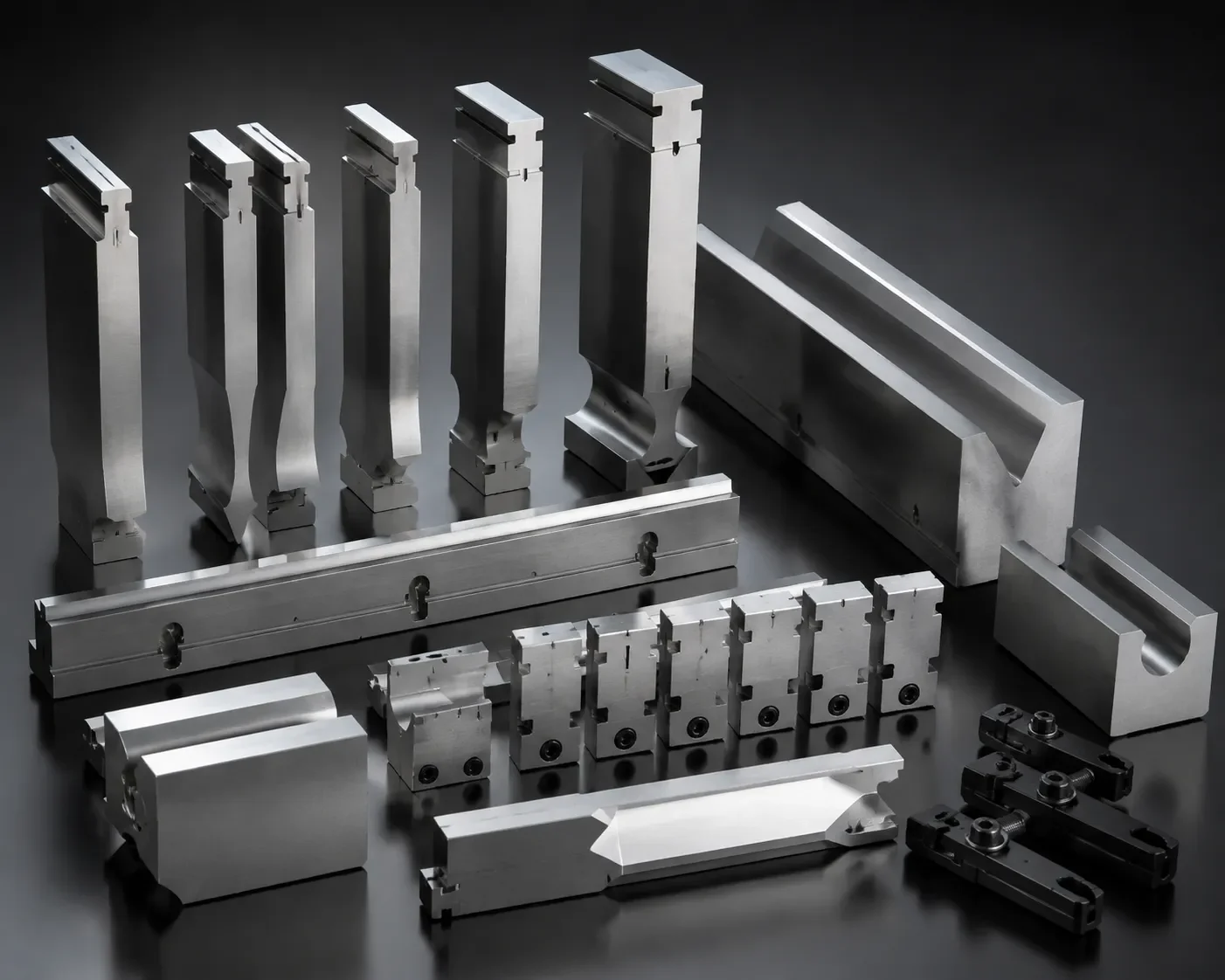

Tooling Profile & Drawing Specs
Rigid manufacturing tolerances and uniform seat geometry ensure seamless integration with press brake tooling and Bystronic clamping systems.
Need Assistance with Custom Tool Drawings?
CAMT application engineers analyze your part drawings to recommend exact punch profiles, V-groove sizes, and segmented set configurations.
Compatibility and Selection Guide
Select the precise Bystronic-compatible press brake tooling for your CNC bending operations. CAMT delivers refined matching logic to maximize bending accuracy, protect machine tonnage limits, and extend tool longevity.
Critical Selection Parameters
Matching press brake tooling requires analyzing structural forces and material behaviors. CAMT evaluates key engineering variables to ensure flawless compatibility with your Bystronic press brake.
- 1 Machine Model & Clamping System Verifies hydraulic or mechanical clamping alignment and upper/lower beam profiles.
- 2 Tonnage Rating & Load Limits Prevents tool deformation by matching maximum bending force per meter to tool capacity.
- 3 Sheet Thickness & Material Type Accounts for tensile strength differences across mild steel, stainless steel, and aluminum.
- 4 Bend Angle & Springback Allowances Determines whether acute punches, 90-degree, or flattening tooling geometry are the best fit for exact angle retention.
- 5 V-Opening Width Optimization Balances inside bend radius and tonnage requirements using proven V-ratio guidelines.

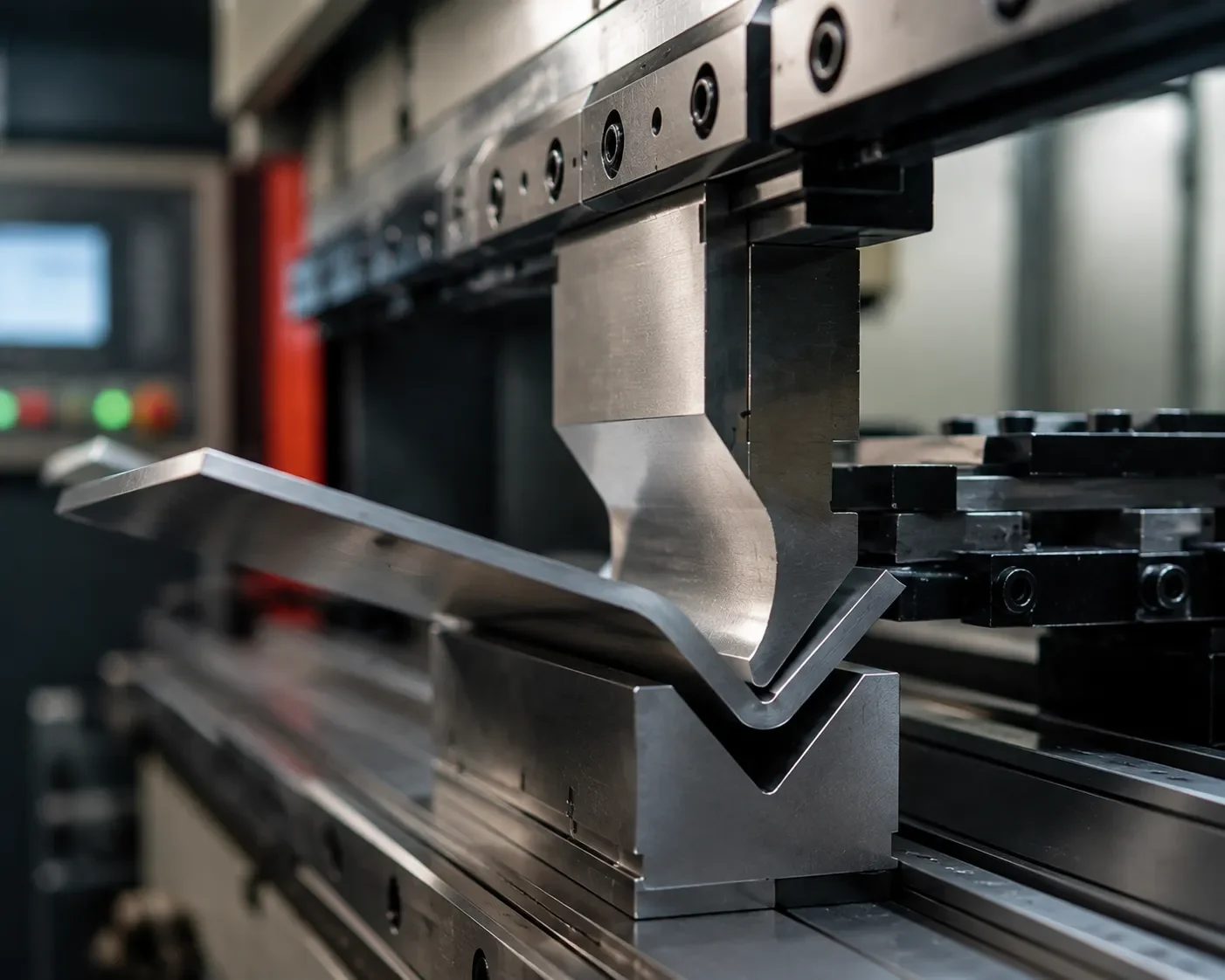

Engineered Press Brake Tooling & Bystronic Integration
High-accuracy CNC ground tools crafted to maximize bending consistency.
Fast-Track Your Custom Match
Submitting technical drawings, physical samples, or machine parameters directly to CAMT helps us align the right press brake punches and tooling for zero-defect tool compatibility.
Tooling Classification Matrix
Bystronic Compatibility VerifiedCompare tool categories to identify the ideal setup based on lead times, complex geometries, and production volume requirements.
| Feature / Metric | Standard Stock Tools | Custom Tooling | Special Forming Tools |
|---|---|---|---|
| Primary Application | Standard 90° & acute angle sheet metal bending | Non-standard radii, thick plate, unique offset profiles | Hemming, radius forming, card guide, ribbing profiles |
| Precision Level | High (±0.01mm tolerance) | Ultra-High (custom ground) | Application-Specific High Precision |
| Bystronic Fitment | 100% Direct Plug & Play | Engineered for Specific Beam | Custom Adapter Compatible |
| Material Suitability | Mild Steel, Aluminum, Thin Stainless | High-Tensile Steel, Structural Alloys | Polished Stainless, Soft Alloys, Coated Sheets |
| Lead Time & Cost | Immediate Shipping / Low Cost | Moderate Lead / Custom Pricing | Project-Based / Specialty Value |
Standard 90° & acute angle sheet metal bending
Non-standard radii, thick plate, unique offsets
Hemming, radius forming, card guide, ribbing
Need Help Matching Your Bystronic Tooling Setup?
CAMT engineers review your machine model, material specifications, and tooling requirements to recommend the right bending solution.
Target Industries and Typical Applications
CAMT Bystronic-compatible tooling engineered to solve complex bending challenges, eliminate costly rework, and maintain tight tolerances across high-demand production lines.
Electrical Enclosures & Control Cabinets
Challenge: Deep four-sided box forming, tight return flanges, and avoiding die lines on pre-painted or galvanized sheets.
Tooling Solution: High-segmentation tall punches and acute punches prevent tool collision and deliver exact seam alignment for IP-rated sealing.
HVAC & Ducting Systems
Challenge: Angle variation across long sheet lengths, frequent gauge transitions, and sheet deflection during extended bends.
Tooling Solution: Precision-ground sectional dies and heavy-duty press brake punches maintain uniform angles along full bed lengths without bow or twist.
Automotive & Transportation Parts
Challenge: Forming high-strength steel (HSS) structural members with severe springback and extreme localized stress.
Tooling Solution: Deep-hardened tool steels and customized tip radii absorb high tonnage while holding strict angular tolerances.
Industrial Machinery & Heavy Structures
Challenge: High-tonnage bending on heavy plate, risking premature tool wear or deformation at the V-die shoulders.
Tooling Solution: Laser-hardened Bystronic-compatible punches and heavy-duty V-groove dies deliver maximum load capacity and extended service life.
Appliance Housings & Decorative Panels
Challenge: Preventing die marks, scratching, and galling on cosmetic stainless steel and aluminum architectural panels.
Tooling Solution: Micro-polished contact surfaces paired with non-marking inserts eliminate post-bend grinding and polishing operations.
Renewable Energy & Power Equipment
Challenge: Fast turnarounds on high-mix solar racking, inverter housings, and battery storage enclosures.
Tooling Solution: Modular Bystronic-fit sets streamline tooling changes, enabling rapid transitions between short prototype runs and continuous mass production.
Scalable Press Brake Tooling for High-Mix Manufacturing
Whether running specialized short batches or automated high-volume production, CAMT Bystronic-compatible tooling ensures seamless machine integration, maximum press brake uptime, and repeatable precision.
Customization Process and Quality Control
CAMT enforces standardized manufacturing and inspection procedures to ensure reliable delivery of Bystronic-compatible press brake tooling.
End-to-End Delivery Workflow
Requirement Confirmation & Blueprint Review
Send your DXF or STEP CAD files. Our engineering team validates application requirements and tolerances for immediate production readiness.
Structural Recommendation & Compatibility Verification
We analyze load limits and geometry to guarantee seamless integration with your press brake punches and tooling equipment.
Precision Manufacturing & Grinding
Advanced CNC machining and precision grinding ensure exact profile dimensions and extended tool service life.
Inspection & Surface Verification
Rigorous quality control testing measures core parameters against micro-inch tolerances before final sign-off.
Protective Packaging & Shipping
Anti-corrosion treatments and heavy-duty reinforced packaging safeguard tooling during worldwide transport.

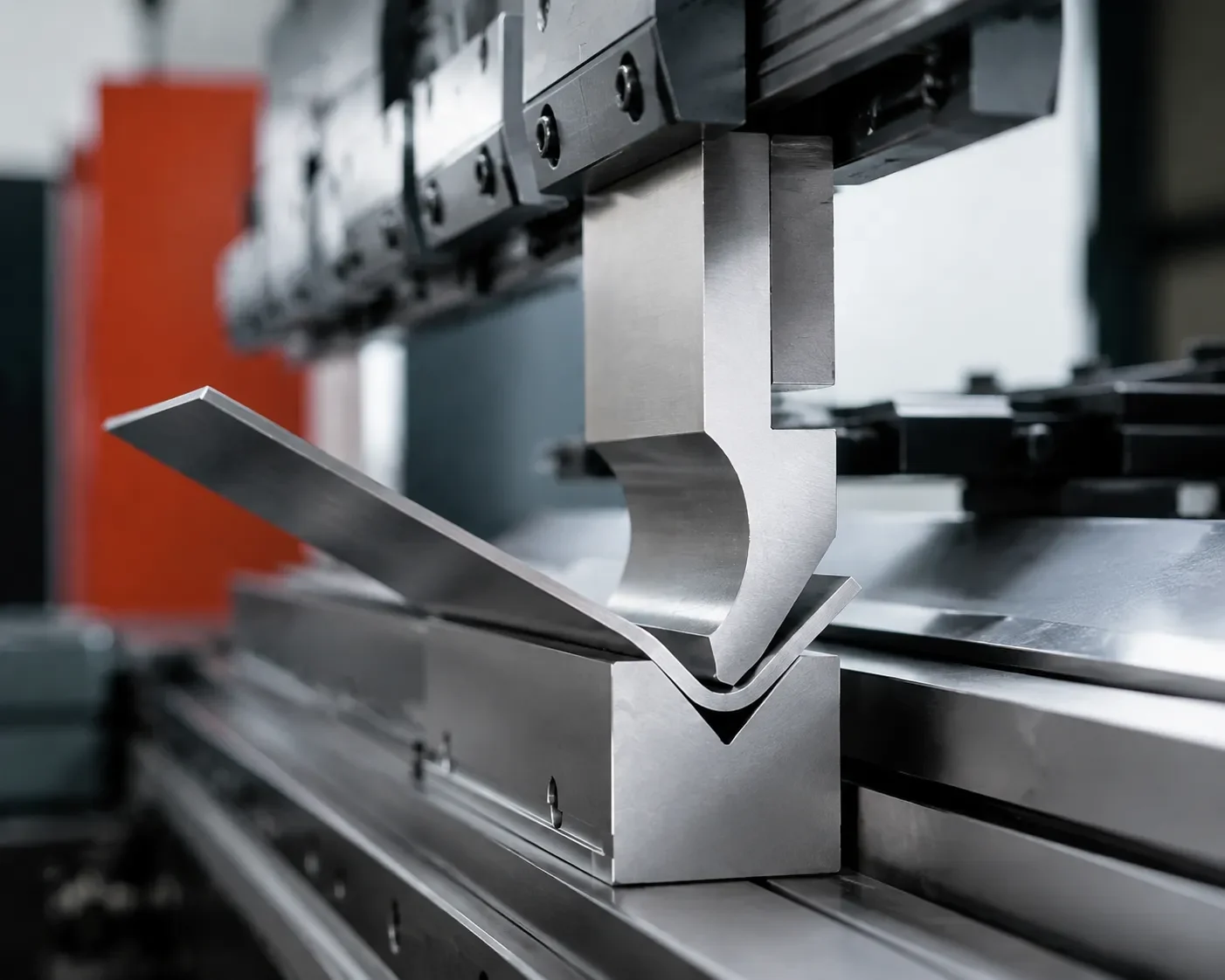

Quality Inspection Protocol
OEM SupportEvery custom tooling component undergoes comprehensive verification to meet stringent OEM durability standards.
- Material Hardness Testing Verified core and surface hardness for long service life.
- Straightness Tolerance Laser-measured alignment prevents deflection along full length.
- Angular Consistency Precise angle checks ensure uniform sheet metal bending.
- Surface Finish & Seating Accuracy Smooth finish and tight seating tolerances for seamless fitment.
Submit your DXF or STEP files to initiate technical review today.
Procurement Trust and Service Assurance
CAMT supports global buyers with stable service and engineering collaboration for Bystronic-compatible press brake tooling procurement. We mitigate cross-border procurement risk through precision manufacturing, transparent lead times, and dedicated technical support.
Fulfillment & Customization
We handle sample confirmations, large batch orders, and precise drawing-based customization with rigorous engineering protocols.
- Fast sample verification and prototype approval
- Custom tooling engineered directly from CAD drawings
- Scalable batch capacity for OEM press brake tooling needs
Quality Commitment & Packaging
Every tool undergoes traceable inspection to guarantee consistency control across every precision bending project.
- 100% dimensional and tolerance inspection records
- Export-grade anti-rust treatments and reinforced crates
- Consistent hardness profile for extended tool lifespans
Technical Consultation & After-Sales
Our application engineers deliver expert selection advice and responsive post-purchase support worldwide.
- Pre-purchase press brake punches selection and compatibility analysis
- Direct engineering response for complex bending queries
- Dedicated global delivery support and tracking
Service Assurance Metrics
Technical Inquiry Response Time
Traceable Quality Inspection
Days Standard Lead Time
Countries Delivered Worldwide

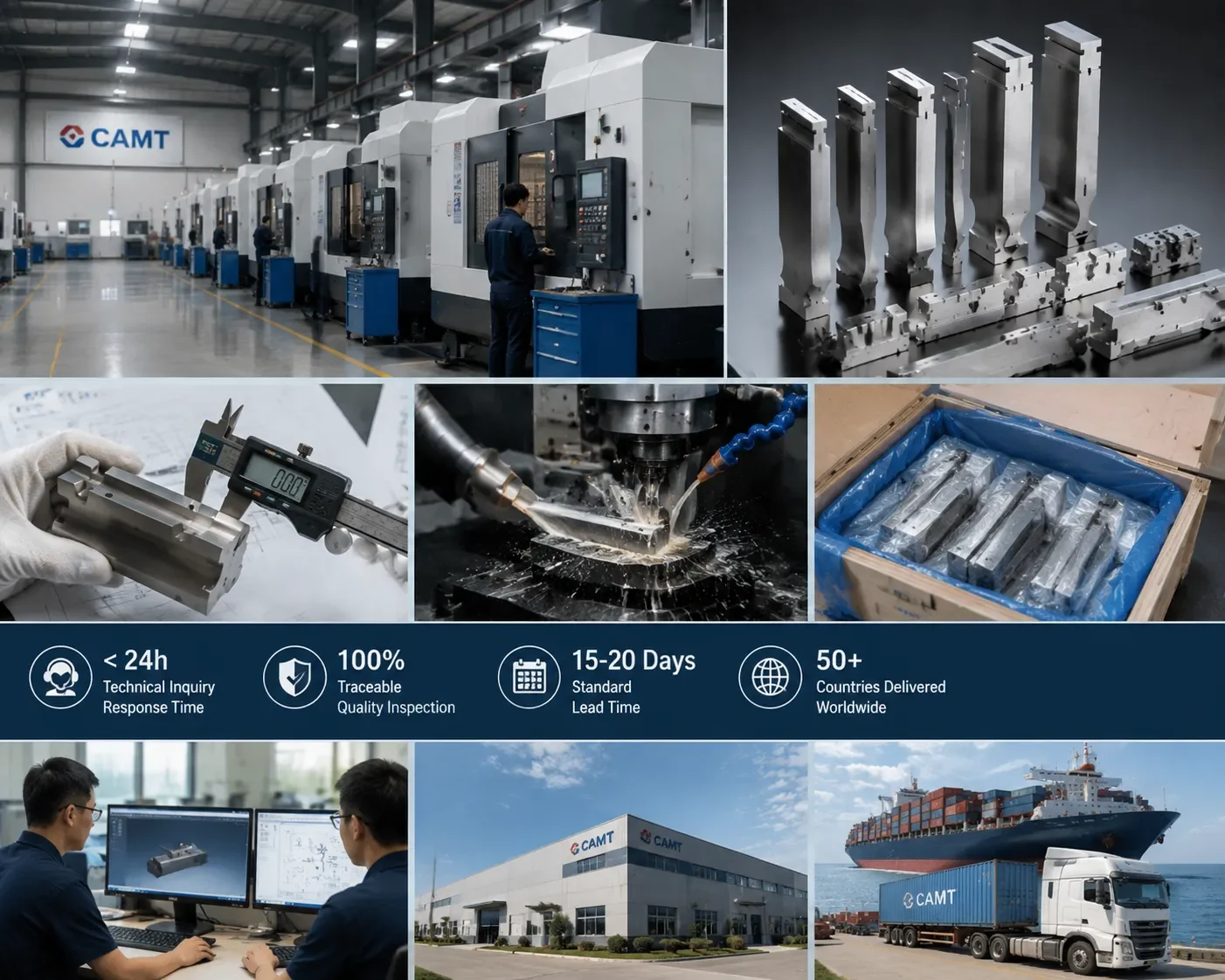

Manufacturing & Track Record
Advanced Factory Capability
High-precision CNC grinding machinery dedicated to Bystronic-compatible press brake tooling.
Engineering Experience
Decades of combined expertise in OEM support, custom tooling, and metal fabrication solutions.
International Track Record
Long-term partnerships with metal fabricators across North America, Europe, and Asia-Pacific.
Verified precision inspection and manufacturing standards at CAMT facilities.
Frequently Asked Questions
Get quick details on Bystronic press brake tooling compatibility, custom manufacturing capabilities, production lead times, and engineering verification.
How do I confirm a Bystronic compatible tool matches my machine?
Can CAMT manufacture upper punches, lower dies, and V dies to our drawings?
What are the minimum order quantities and lead times for custom tooling?
Can you provide samples or technical verification before bulk orders?
What parameters should I submit for a fast and accurate quote?
Need Custom Tooling for Your Bystronic Press Brake?
Submit your machine specifications, tooling requirements, or part drawings. CAMT engineers will verify compatibility and recommend the right bending solution.
