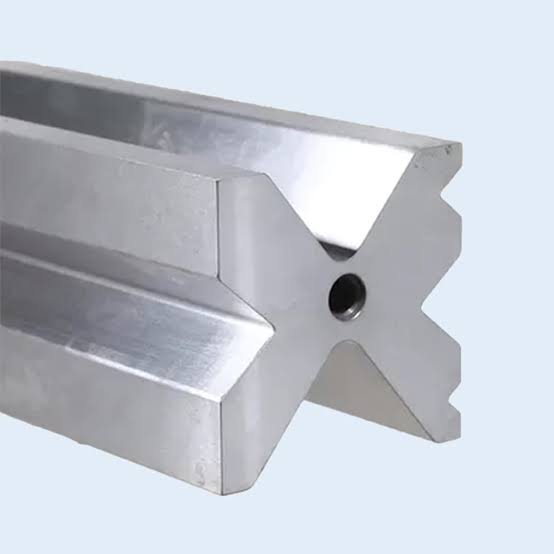

5 8 Inch Press Brake Die 8 Ft Heavy Duty Tooling

Product Overview & High-Precision Bending Performance

Engineered for Precision Sheet Metal Forming

We engineered our 5 8 inch press brake die to deliver high repeatability and tight-tolerance performance across demanding sheet metal applications. Designed as a universal bottom tooling solution, this die excels in standard 90° and acute angle air bending as well as precision coining operations.

Optimized specifically for forming 14-gauge (~1.6 mm / 1/16") mild steel and stainless steel components, it delivers consistent bend radii without causing material fracture or structural weakness.

Key Performance Highlights & Advantages

Maintaining angular accuracy across long sheet metal sections requires tooling built to strict engineering standards:

• • Micron-Level Accuracy: Precision CNC ground to profile tolerances of ±0.01 mm, ensuring uniform bend angles across the entire 8 ft span.
  • Extended Service Life: Deep induction hardening along working edges increases wear resistance up to 3× compared to non-hardened tooling.
  • Anti-Marring Surface Finish: A smooth ground surface finish (Ra < 0.8 µm) minimizes sheet marking and scrap rates on pre-painted, aluminum, or polished stainless steel.
  • Direct Factory Model: Original manufacturer quality manufactured with complete material traceability and direct factory pricing to optimize your tooling ROI.

Technical Specifications & Dimensions Matrix

Standard Dimensional Specifications

Heat Treatment & Material Parameters

We select heavy-duty tool steel and apply advanced heat treating so your 5 8 inch press brake die maintains precise profile accuracy over millions of bend cycles:

• • Steel Grade: High-grade 42CrMo / 42CrMo4 alloy steel. Check out our detailed press brake tooling material guide to see how steel selection prevents premature wear.
  • Working Edge Hardness: 55–60 HRC (Deep induction hardened along critical V-radius contact zones).
  • Core Hardness: 47–50 HRC (Vacuum heat treated for high structural toughness).
  • Grinding Tolerance: Precision CNC ground to ±0.01 mm (±0.0004 in).
  • Surface Roughness: Ra < 0.8 µm for reduced friction and minimal sheet marking.
  • Straightness Tolerance: ≤ 0.05 mm per meter across the entire tool length.

Material Compatibility & Engineering Guidance

Choosing the right material thickness and understanding press brake tonnage limits ensures flawless bends without damaging your tooling or machine.

Recommended Sheet Metal Gauges (The 8x V-Opening Rule)

In standard air bending operations, we follow the industry-proven 8x rule: V-Opening = 8 x Material Thickness (T). With a 5/8 inch press brake die (0.625 in / 15.875 mm), the sweet spot for sheet metal forming covers specific material ranges:

• • Primary Material Range: Ideal for 14-gauge mild steel (~0.075 in / 1.9 mm) down to 16-gauge (~0.060 in / 1.5 mm) mild steel and stainless steel sheets.
  • Alternative Applications (6x Rule): Can be used on thinner sheet metal down to 18-gauge (~0.048 in / 1.2 mm) when a tighter inside bend radius is needed.
  • Short-Leg Bends: Allows shorter flange lengths on heavier gauges, provided operations remain strictly within safe machine tonnage limits.

Deploying a 5/8 inch press brake die 8 ft tooling setup gives you uniform air bending performance across full 96-inch sheets, making it an essential workhorse for general sheet metal fabrication and structural component production.

Tonnage Rating & Bending Force Limits

Critical Safety Callout:
Tonnage requirements jump drastically during bottoming (3x to 4x air bending tonnage) or coining (8x to 10x air bending tonnage). Never exceed 12 Tons per foot on a 5/8" V-opening. Structural overload can micro-fracture the V-radius shoulders or cause permanent center sag across an 8 ft die length.

Machine Brand & Clamping System Compatibility

Mounting Style Integration

We supply our 5 8 inch press brake die 8 ft tooling in all standard industry tang configurations to match your setup:

• • American Precision Style: Features a direct-fit 0.500" x 0.625" (12.7 mm x 15.875 mm) tang engineered for standard American clamping beams.
  • European / Promecam Style: Built with standard alignment grooves and safety pins for exact center alignment on European-style beds.
  • New Standard / WILA Style: Equipped with quick-change mounting pins and power-clamp compatibility for automated setup environments.

When configuring your bed setup, explore our complete range of precision single V-dies to match your exact hydraulic press brake system.

Compatible Press Brake Brands

Our precision-ground bottom dies are fully compatible with leading global press brake manufacturers:

Key Industrial Applications

Core Manufacturing Sectors

We design our 5/8 inch press brake die to deliver tight radius control and reliable form accuracy across high-volume production lines:

• • Electrical Enclosures & Cabinets: Ensures crisp 90° bends on control boxes, switchgear panels, and specialized electrical cabinet manufacturing where tight corner squareness is required for proper sealing.
  • HVAC Systems & Ductwork: Accelerates channel and flange forming for long sheet metal runs, maintaining flat profiles and uniform angles along the full 8 ft length.
  • Automotive & Commercial Vehicles: Provides high repeatability for structural mounting brackets, interior paneling, and heavy-duty chassis components formed from 14-gauge materials.
  • Elevator & Architectural Trim: Ideal for scratch-free bending on polished stainless steel and decorative panels in modern elevator manufacturing, minimizing scrap on premium surface finishes.

CAMT Manufacturing Excellence & Quality Control

At CAMT, we engineer every 5 8 inch press brake die to match strict industrial standards. Our facility relies on an advanced manufacturing process that eliminates mechanical deviations and guarantees consistent performance across every single piece of tooling we ship.

6-Step Precision Manufacturing Process

We follow a strict, repeatable production sequence for every continuous 5 8 inch press brake die 8 ft profile:

• • Certified Steel Selection: We start exclusively with 100% spectro-analyzed 42CrMo alloy steel billets to guarantee structural integrity and defect-free core material.
  • Rough CNC Machining: Precision CNC shaping establishes the exact die body dimensions, mounting tang profiles, and preliminary V-groove geometry.
  • Controlled Heat Treatment: Vacuum hardening treatment achieves uniform core strength (47–50 HRC) without introducing thermal stress.
  • Deep Induction Hardening: Targeted high-frequency induction hardening along the V-radius contact zones builds surface hardness to 55–60 HRC for extreme wear resistance.
  • Precision Surface Grinding: High-precision CNC grinding produces micron-level profile tolerances (±0.01 mm) and smooth surface finishes across the entire 8 ft length.
  • Inspection & Packaging: full-length CMM verification followed by anti-rust oil application and reinforced export packaging.

Quality Assurance Certificates

To ensure complete transparency and traceability, every order supported by our rigorous quality control system includes a complete quality assurance package:

• • CMM Inspection Reports: Full dimensional verification mapping across all critical profile tolerances.
  • Hardness Verification Logs: Verified surface and core hardness test results.
  • Mill Test Certificates (MTC): Raw material chemical composition and physical property certification.

Custom Lengths, Sectional Tooling & OEM Services

We configure every 5 8 inch press brake die to match your exact shop-floor layout, production volume, and part geometry.

Continuous 8 ft vs. Modular Sectional Sets

• • Continuous 5 8 inch press brake die 8 ft: Delivers flawless, seam-free bends along full 96-inch sheets. Ideal for long architectural panels, ductwork, and structural channels where join marks are unacceptable.
  • Modular Sectioned Sets: Divided into pre-cut segments (including 10", 20", and ear pieces) to form complex boxes, deep side flanges, and return bends. Sectional tooling drastically reduces setup time and allows single-operator manual tool changes without overhead cranes.

Custom Engineering (OEM / ODM)

Our team offers tailored custom tooling development to build specialized dies to your exact specifications.

• • Custom V-Angles: Precision ground 30°, 45°, 60°, and 88° angles for acute air bending and springback compensation.
  • Specialty Radius Inserts & Multi-V Dies: Custom nose radii and multi-opening configurations to streamline multi-gauge job runs on our complete line of press brake dies.

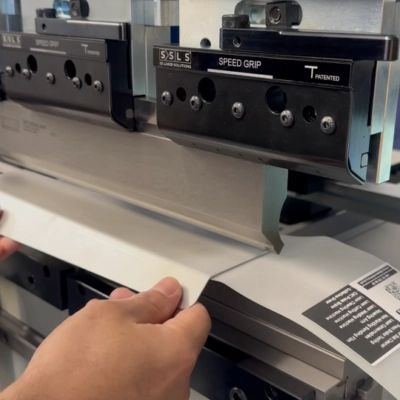

  • Polyurethane Non-Marring Adapters: Integrated synthetic inserts to prevent die contact lines on pre-painted or polished stainless steel sheets.
  • Fast CAD/CAM Review: Send us your part files, and our engineers will provide detailed CAD review and 3D bend simulations within 24 hours to guarantee tool clearance and flange accuracy.

Request a Quote for a 5/8 Inch Press Brake Die

Direct Factory Quote Requirements

To get an accurate price and rapid production turnaround for your 5/8 inch press brake die or full 5/8 inch press brake die 8 ft continuous setup, we need a few specific parameters upfront. Providing these key details allows us to deliver exact pricing and guarantee seamless tooling compatibility:

• • Tooling Geometry & Angles: Confirm the 5/8" V-opening width along with your target included angle (90°, 88°, 85°, or custom acute angles).
  • Length & Configuration: Specify whether you require a full continuous 8 ft (96 inches / 2438 mm) bottom die or modular sectional tooling sets.
  • Machine Brand & Clamping Style: Tell us your press brake make (Amada, Trumpf, Cincinnati, Accurpress, etc.) and mounting system (American Precision, European/Promecam, or WILA / New Standard).
  • Workpiece Material Profile: Share your primary material type, gauge thickness (e.g., 14-gauge mild steel), and tensile strength.

CAMT Fast Service Commitment

We keep lead times short so you can maintain maximum uptime in your shop. For custom profile setups or complex bend calculations, our engineering services team reviews your technical drawings to ensure optimal tooling performance before production begins.

Frequently Asked Questions: 5 8 Inch Press Brake Die 8 ft

What sheet thickness is a 5 8 inch press brake die suitable for?

Our 5 8 inch press brake die features a 15.875 mm V-opening, making it ideal for air bending 14-gauge mild steel (~1.9 mm / 0.075 in) down to 16-gauge (~1.5 mm / 0.060 in) sheet metal under the standard 8x V-opening rule.

• • 14-Gauge Sheet Metal: Delivers an optimal inside bend radius roughly equal to material thickness.
  • 16-Gauge Sheet Metal: Operates as a 10x V-opening for lower tonnage needs and softer bend radiuses.
  • Thinner Gauges (18-Gauge): Works for wider radius requirements or acute air bending applications.

How do I select between an 8 ft continuous die and sectional tooling sets?

Choosing the right format for your 5 8 inch press brake die 8 ft setup depends entirely on your product geometries and operator workflow:

Is the 5/8 inch V die compatible with American and European clamping systems?

Yes. We engineer our bottom tooling with precision tangs and grooves to fit all major machine models. We offer standard American style tangs (0.500" x 0.625"), European/Promecam quick-change grooves, and WILA / New Standard adaptation systems. You can browse our complete line of compatible press brake tooling to match your machine beam setup.

What steel grade and heat treatment are used for long-life press brake dies?

We build our dies for long service lives under heavy daily production cycles using top-tier alloy steels and multi-stage heat treatments:

• • Material: Certified 42CrMo / 42CrMo4 alloy tool steel for superior toughness and resistance to cracking.
  • Core Hardness: Vacuum heat-treated to 47–50 HRC to absorb high bending loads without deformation.
  • Working Edge Hardness: Deep induction-hardened along the V-contact zones to 55–60 HRC, giving you up to 3× longer wear resistance than non-hardened dies.

How do I calculate tonnage requirements for a 5/8 inch V die?

For standard air bending of mild steel (tensile strength ~60,000 PSI), calculate tonnage per foot using the practical air-bending formula:

Tonnage (tons/ft) = (575 × T²) / V

• • T = Sheet thickness in inches
  • V = V-opening width in inches (0.625 in)

Worked Example for 14-Gauge Mild Steel (0.075 in thickness):
1. Square Thickness: 0.075 × 0.075 = 0.005625
2. Multiply by Constant: 575 × 0.005625 = 3.234
3. Divide by V-Opening: 3.234 / 0.625 = 5.17 tons per foot
4. 8 Ft Total Tonnage: 5.17 tons/ft × 8 ft = ~41.4 tons total force

Note: For stainless steel, multiply the calculated tonnage by 1.5.
